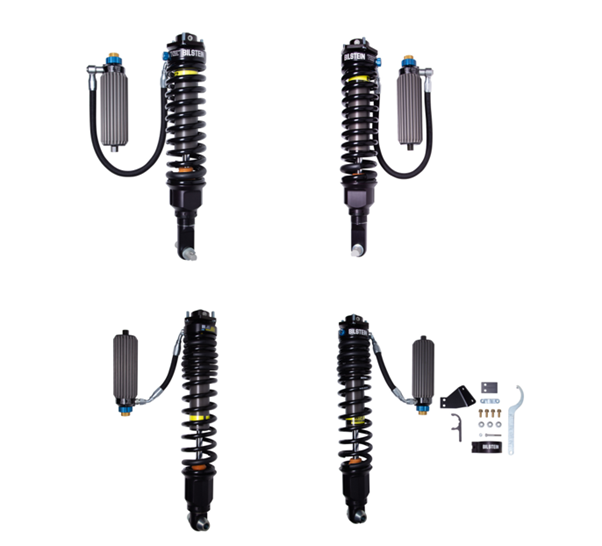

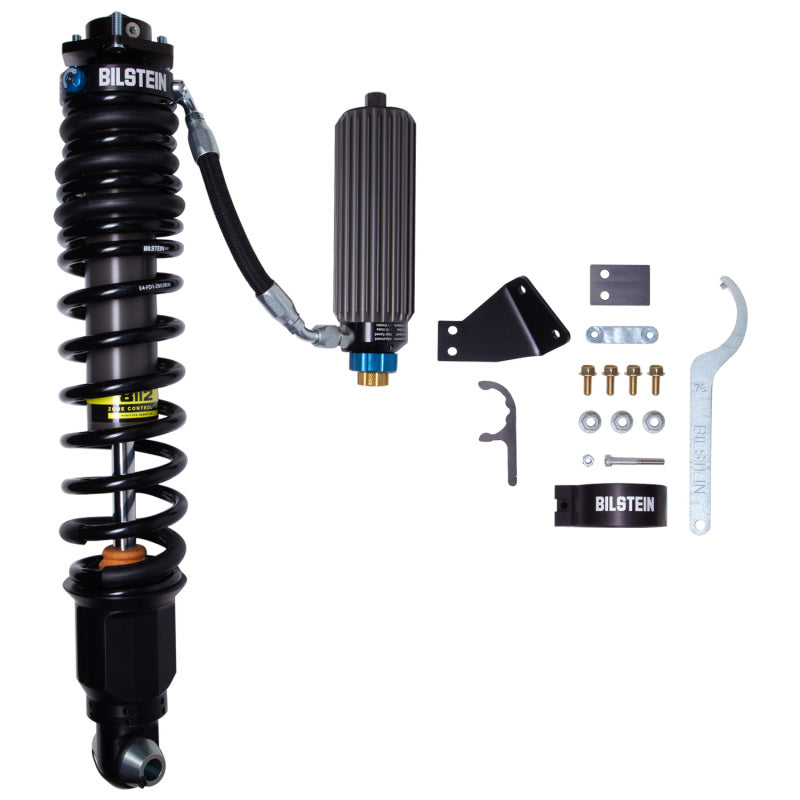

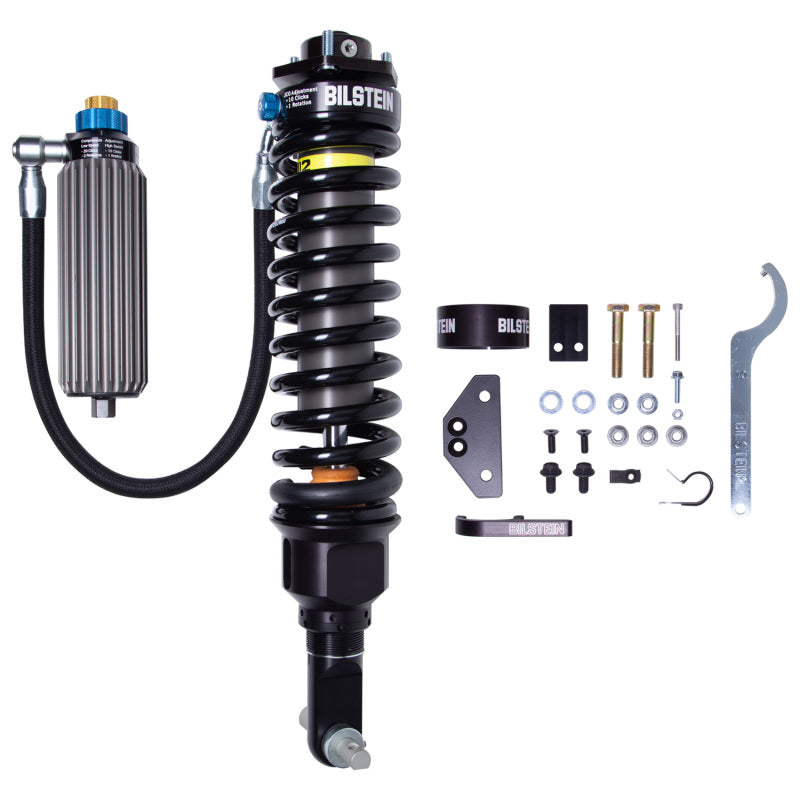

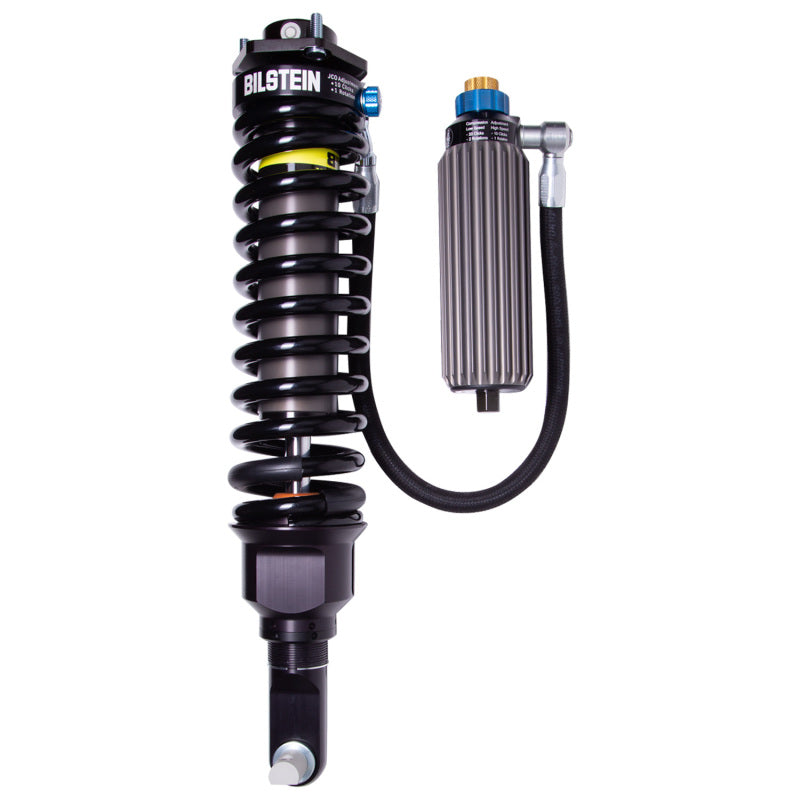

Bilstein Ford Bronco B8 8112 Suspension Shock Absorber and Coil Spring Assembly Kit
Bilstein Ford Bronco B8 8112 Suspension Shock Absorber and Coil Spring Assembly Kit
Regular price
Dhs. 27,960.00 AED
Regular price
Sale price
Dhs. 27,960.00 AED
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Part Numbers
bil41-314319 Front Left
bil41-314227 Front Right
bil41-314326 Rear Left
bil41-314333 Rear Right

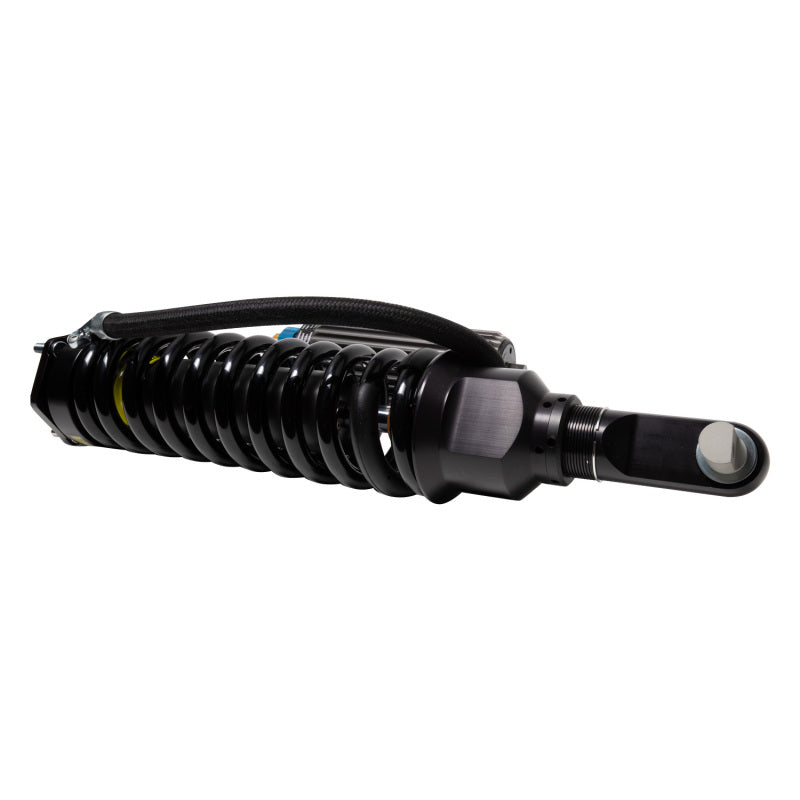

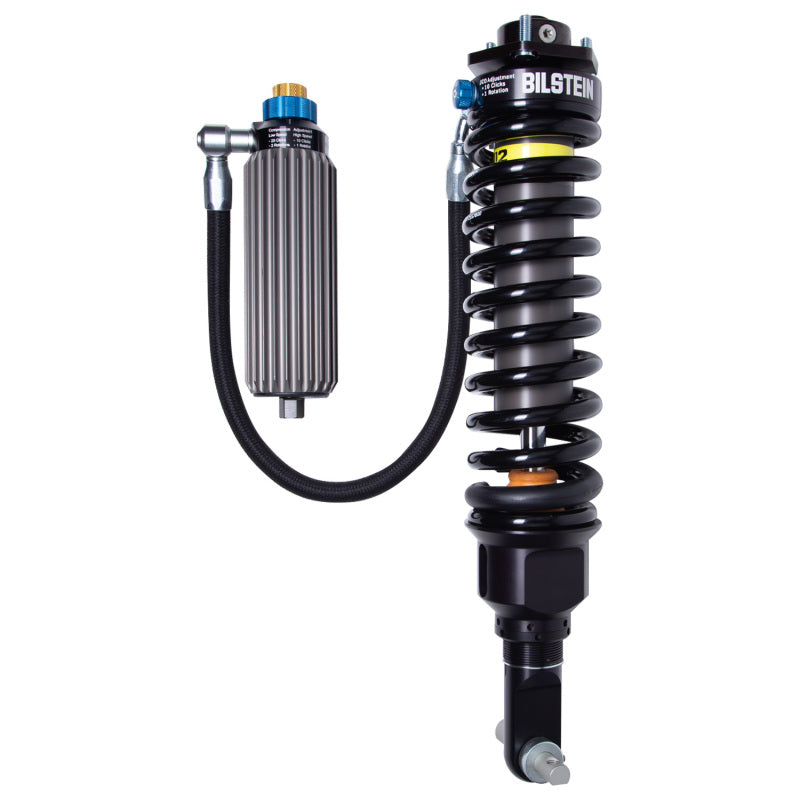

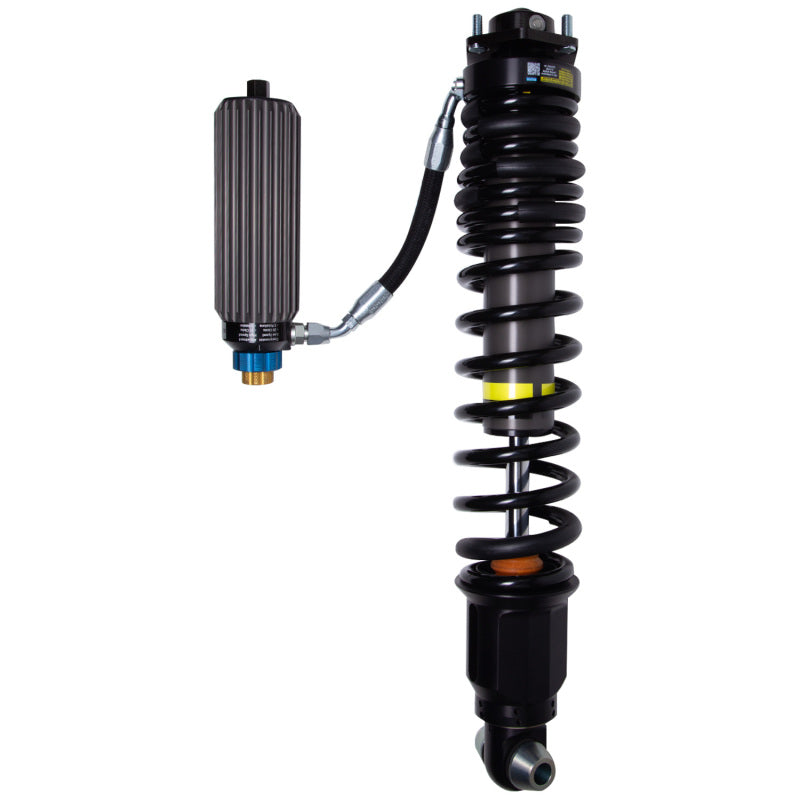

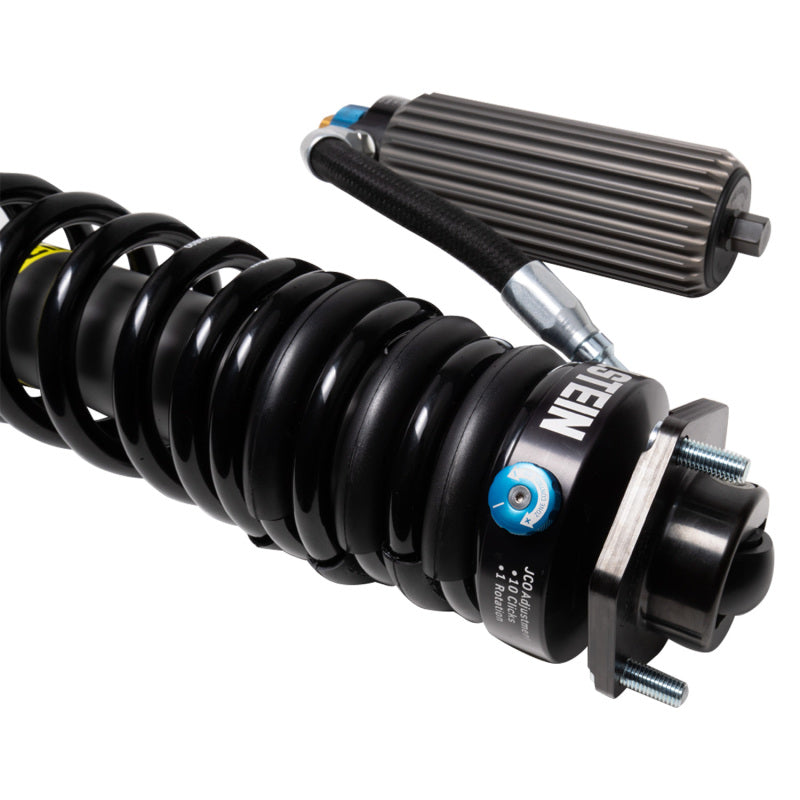

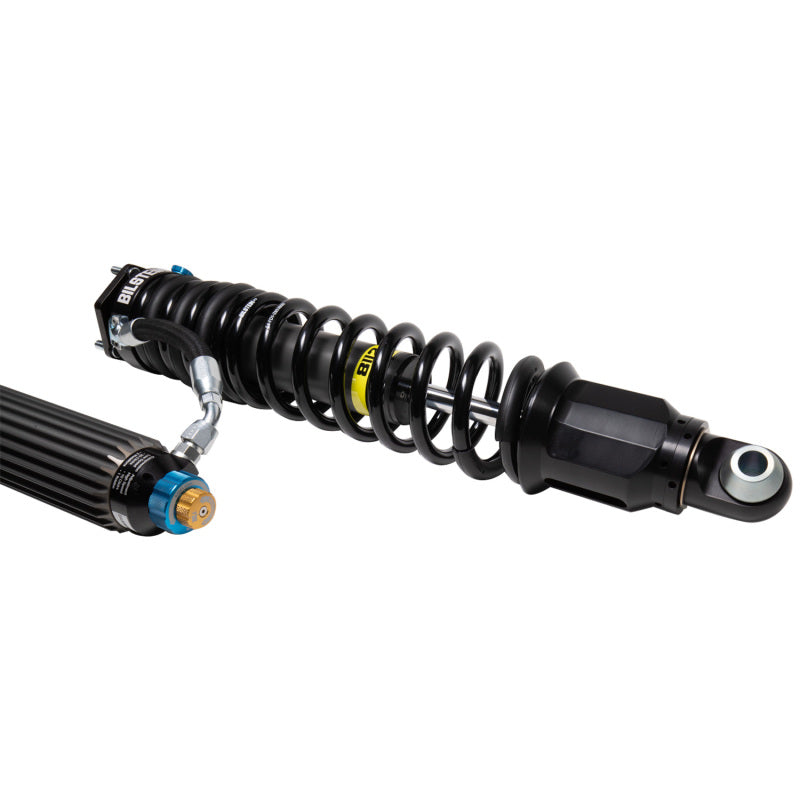

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Features and Benefits

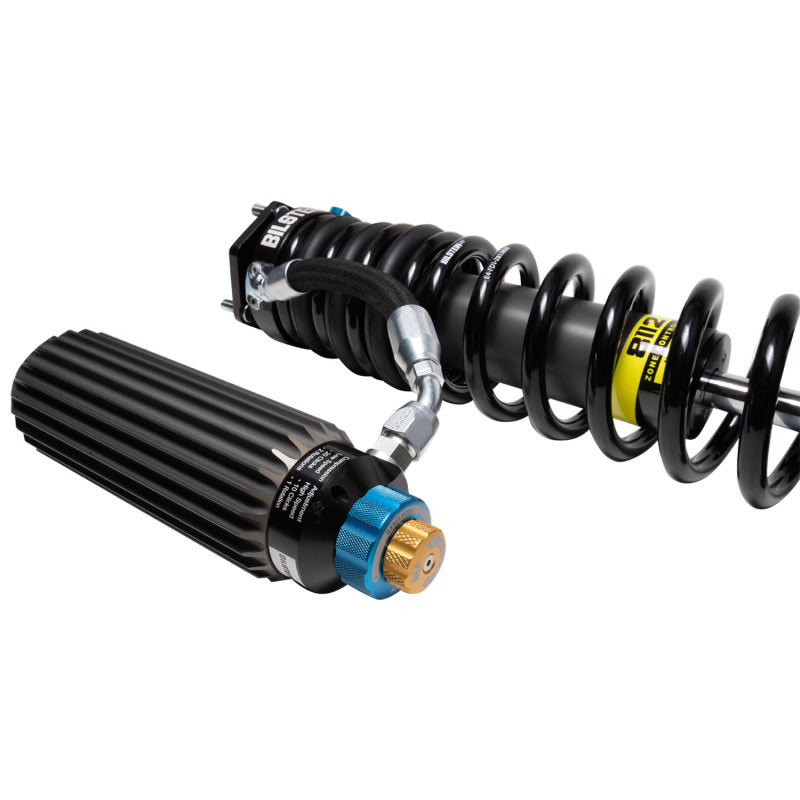

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)

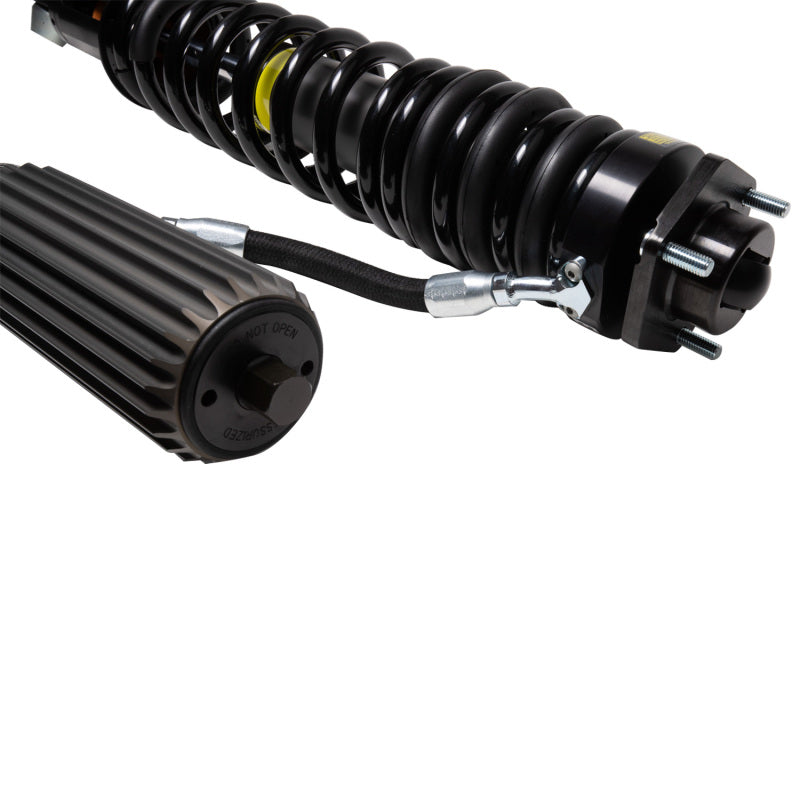

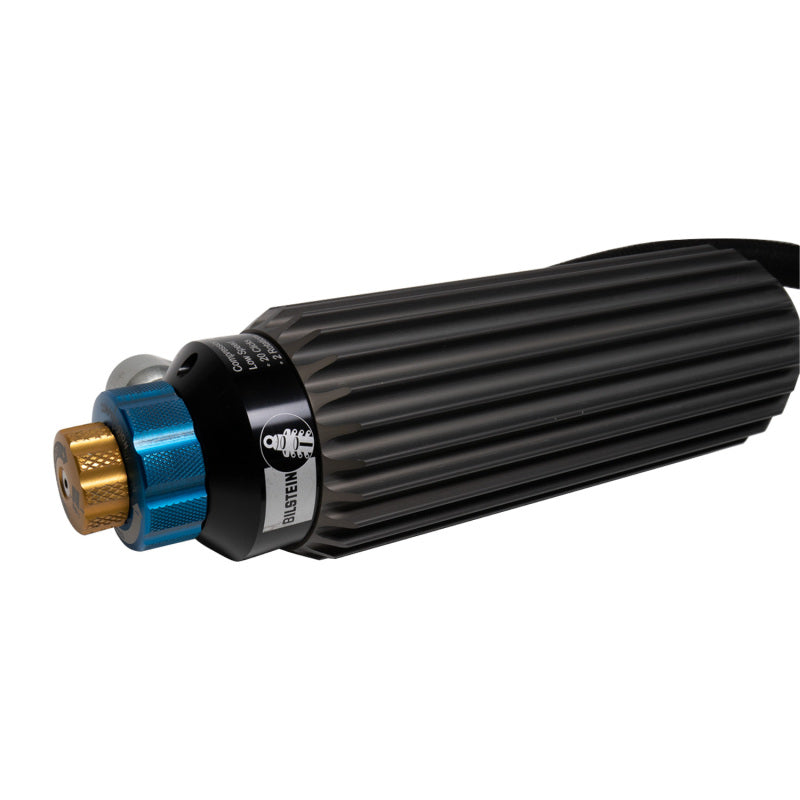

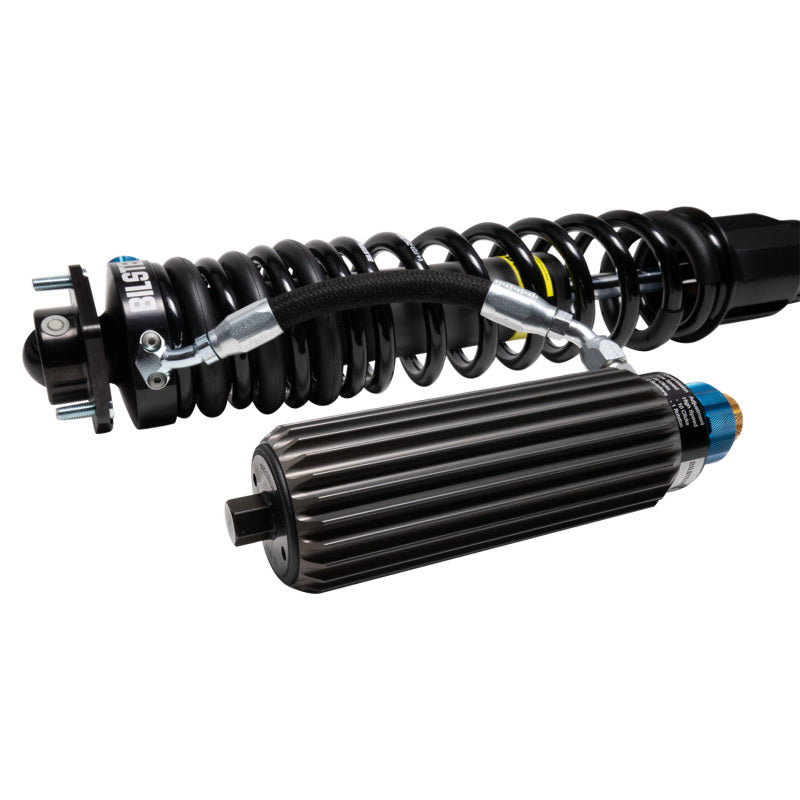

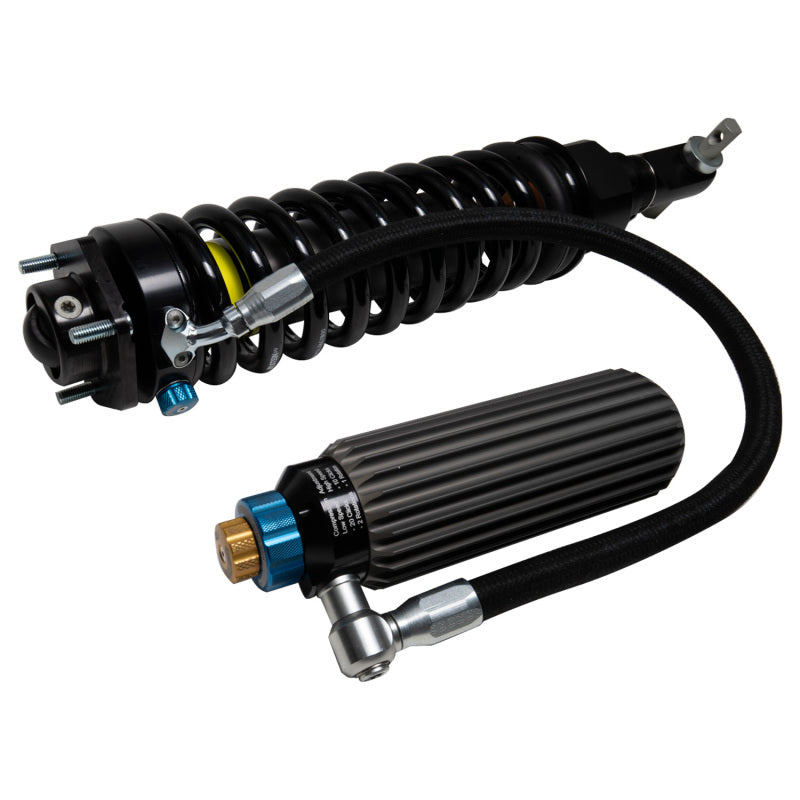

- 60mm remote reservoir for increased oil capacity and cooling
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
Specifications
Body Diameter (ID):
60mm
Upper Mount Type:
Special
Series:
B8 8112 (ZoneControl CR DSA+)
Title:
Bilstein Shock Absorbers
Finish:
Dampers: EVO Grey/Springs: Black
Internal Design:
Monotube
Boot Included:
No
Collapsed Length (IN):
17.59
Collapsed Length (MM):
446.2
Extended Length (IN):
23.40
Body Design:
Smooth Body (Coilover)
Segment:
Light Truck
Adjustable Damping:
Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Extended Length (MM):
594.7
Spring Seat Included:
Yes
Reservoir:
Yes - Finned Aluminum
Body Material:
Aluminum

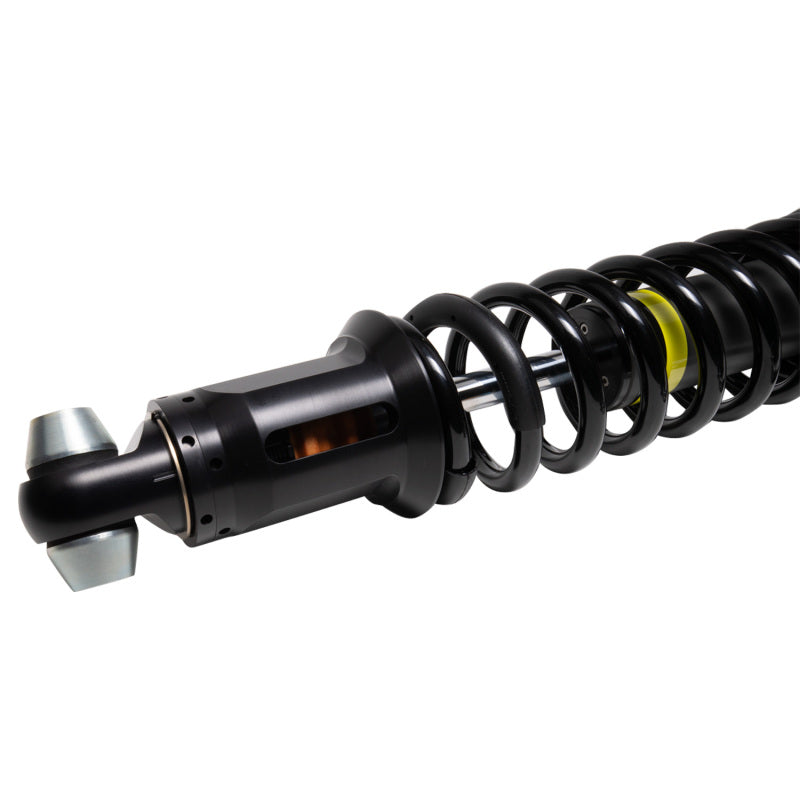

Lower Mount Type:
Crossbar
Fitment Vehicles
2021: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2021: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2022: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2023: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2024: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2024: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2025: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2025: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package
- 2021-2025 Ford Bronco Badlands V6.-cc Suspension::Suspension Packages
2021: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2021: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2022: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2023: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2024: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2024: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2025: Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 2025: Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package
- 2021-2023 Ford Bronco Base L4.2300cc Suspension::Suspension Packages
2021: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2021: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2023: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2025: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2025: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package
- 2025 Ford Bronco Base L4.2300cc Suspension::Suspension Packages
2021: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2021: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2023: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2025: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2025: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package
- 2021-2023 Ford Bronco Base V6.-cc Suspension::Suspension Packages
2021: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2021: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2023: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5"
- 2021-2025 Ford Bronco Big Bend L4.2300cc Suspension::Suspension Packages
2021: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2021: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2022: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2023: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2024: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2024: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2025: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5"
- 2021-2024 Ford Bronco Big Bend V6.-cc Suspension::Suspension Packages
2021: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2021: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2022: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2023: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2024: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2024: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5"
- 2021-2024 Ford Bronco Black Diamond L4.2300cc Suspension::Suspension Packages
2021: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2021: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2022: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2023: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2024: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2024: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5"
- 2021-2024 Ford Bronco Black Diamond V6.-cc Suspension::Suspension Packages
2021: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2021: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2022: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2023: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2024: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2024: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5"
- 2022-2024 Ford Bronco Everglades L4.2300cc Suspension::Suspension Packages
2022: Provides 0-1.4" Front Lift 2023: Provides 0-1.4" Front Lift 2024: Provides 0-1.4" Front Lift
- 2021 Ford Bronco First Edition V6.-cc Suspension::Suspension Packages
2021: Provides 0.6-1.7" Front Lift 2021: Provides 0-1.4" Front Lift
- 2023-2025 Ford Bronco Heritage Edition L4.2300cc Suspension::Suspension Packages
2023: Provides 0.6-1.7" Front Lift 2023: Provides 0-1.4" Front Lift 2024: Provides 0.6-1.7" Front Lift 2024: Provides 0-1.4" Front Lift 2025: Provides 0-1.4" Front Lift
- 2024-2025 Ford Bronco Heritage Edition V6.-cc Suspension::Suspension Packages
2024: Provides 0.6-1.7" Front Lift 2024: Provides 0-1.4" Front Lift 2025: Provides 0-1.4" Front Lift
- 2023-2024 Ford Bronco Heritage Limited Edition V6.-cc Suspension::Suspension Packages
2023: Provides 0.6-1.7" Front Lift 2023: Provides 0-1.4" Front Lift 2024: Provides 0.6-1.7" Front Lift 2024: Provides 0-1.4" Front Lift
- 2021-2025 Ford Bronco Outer Banks L4.2300cc Suspension::Suspension Packages
2021: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2021: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2022: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2023: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2024: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2024: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2025: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5"
- 2021-2025 Ford Bronco Outer Banks V6.-cc Suspension::Suspension Packages
2021: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2021: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2022: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2022: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2023: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2023: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2024: Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2024: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" 2025: Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5"
- 2025 Ford Bronco Stroppe Edition V6.-cc Suspension::Suspension Packages
2025: Provides 0.6-1.7" Front Lift
2021: Provides 0.6-1.7" Front Lift 2021: Provides 0-1.4" Front Lift 2022: Provides 0.6-1.7" Front Lift 2022: Provides 0-1.4" Front Lift 2023: Provides 0.6-1.7" Front Lift 2023: Provides 0-1.4" Front Lift 2024: Provides 0.6-1.7" Front Lift 2024: Provides 0-1.4" Front Lift
