Eibach PRO-TRUCK-LIFT Stage 1 / Stage 2 / Stage 2R for 2022+ Toyota TundraSR, SR5, Limited, TRD Offroad Crew Cab 3.4L i-FORCE MAX Hybrid 4WD XK70

Upgrade the suspension of your 2022-2026 Toyota Tundra SR, SR5, Limited or TRD Off-Road Crew Cab 3.4L i-FORCE MAX Hybrid 4WD (XK70) with Eibach's PRO-TRUCK-LIFT systems. This listing combines three complete Eibach suspension packages into one product so you can choose between Stage 1, Stage 2 or Stage 2R depending on the level of adjustment and off-road performance required.

Available Variants

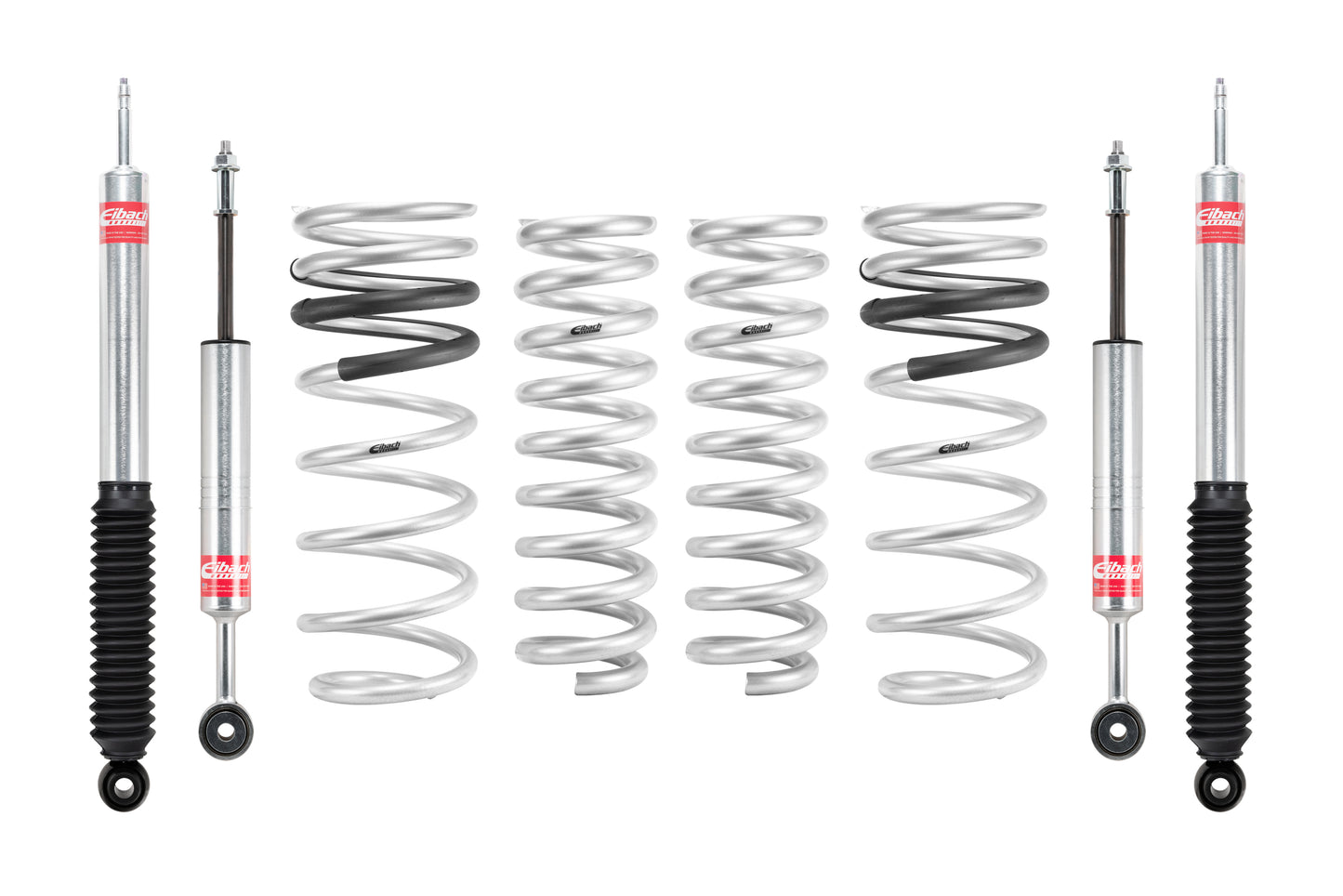

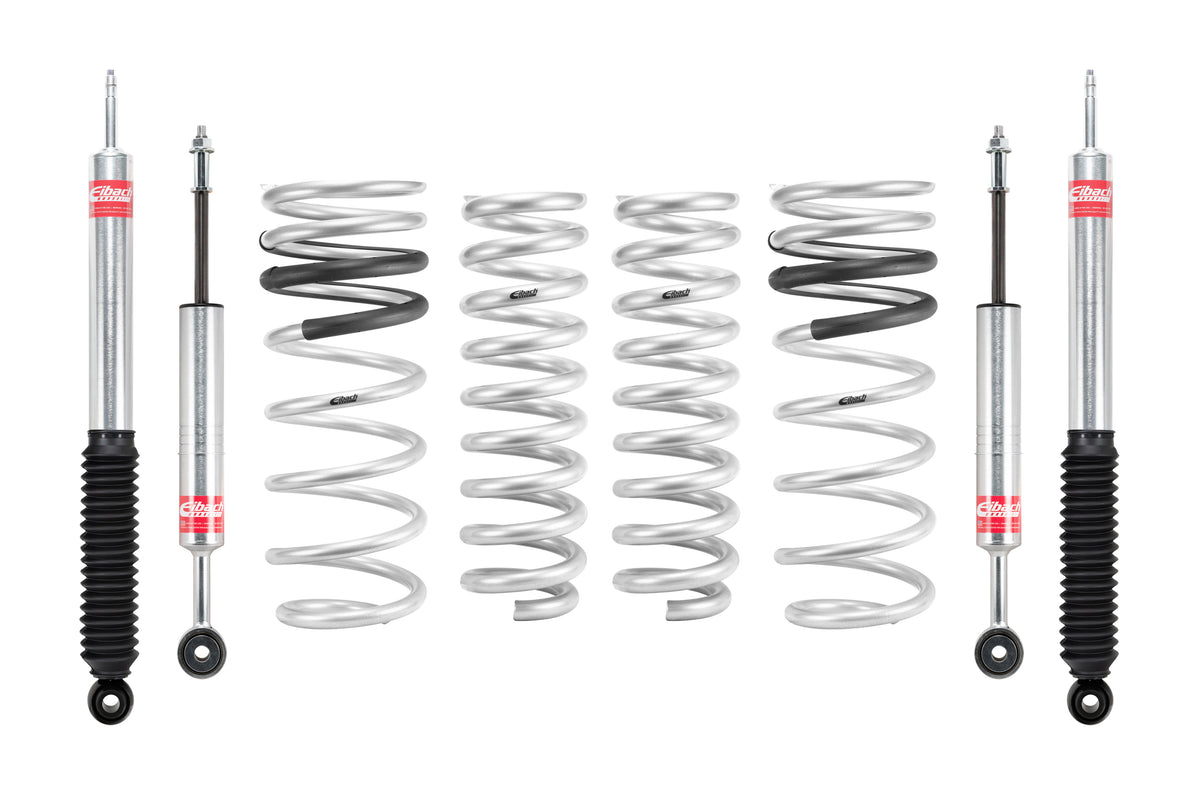

Stage 1 Kit — E80-82-096-01-22

• Set of 4 Eibach PRO-TRUCK Sport shocks + 4 lift springs
• Approximate lift for i-FORCE MAX Hybrid 4WD: +2.5" front / +0.7" rear
• Height-adjustable front shock clip design
• Matched spring and shock package for improved tire clearance, ride control and on/off-road performance

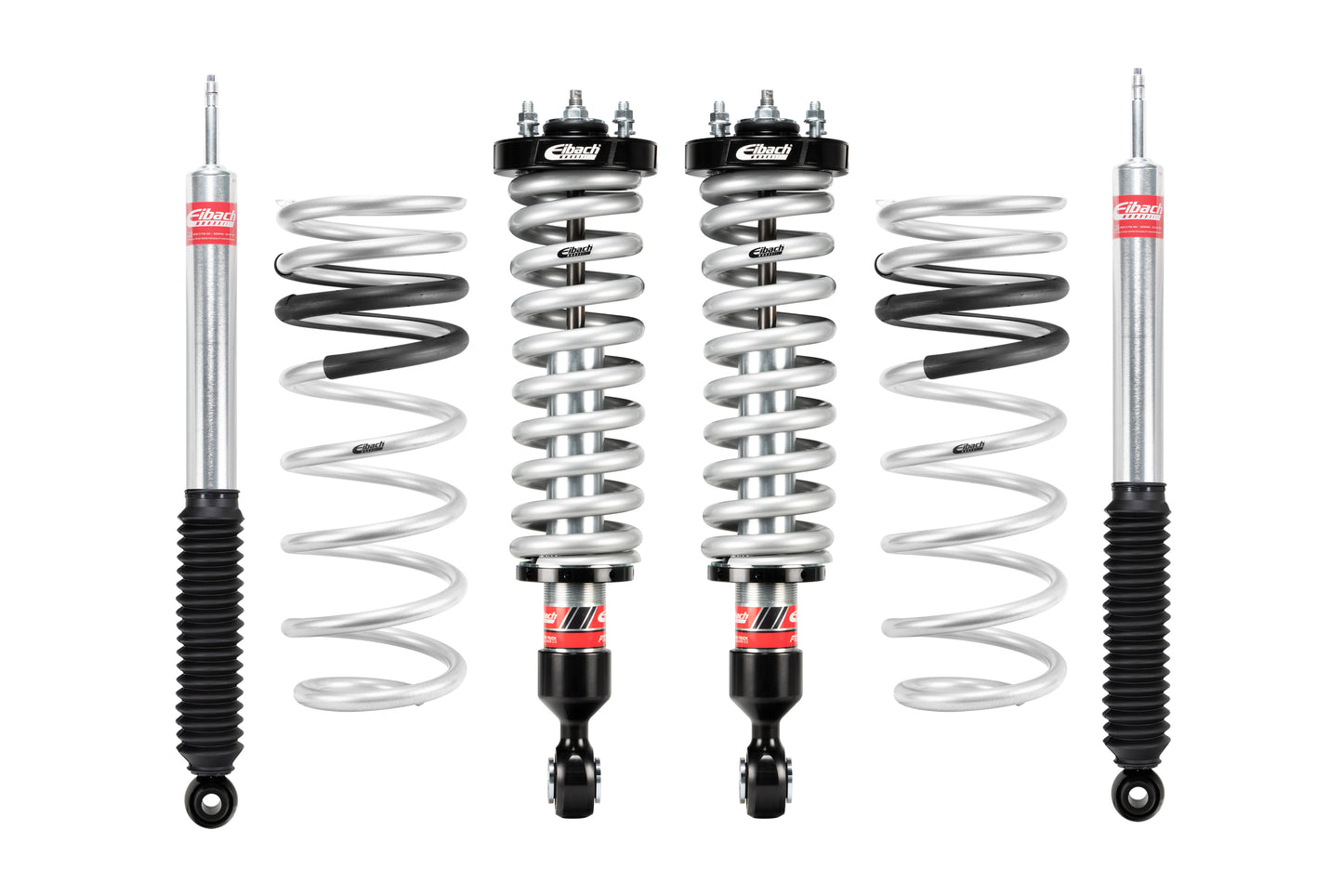

Stage 2 Kit — E86-82-096-01-22

• Pair of PRO-TRUCK Coilover 2.0 front coilovers
• Pair of rear PRO-TRUCK Sport shocks
• Pair of PRO-LIFT-KIT rear springs
• Approximate lift for i-FORCE MAX Hybrid 4WD: +0.7" to +3.1" front / +0.7" rear
• Threaded front coilovers allow fine tuning of ride height

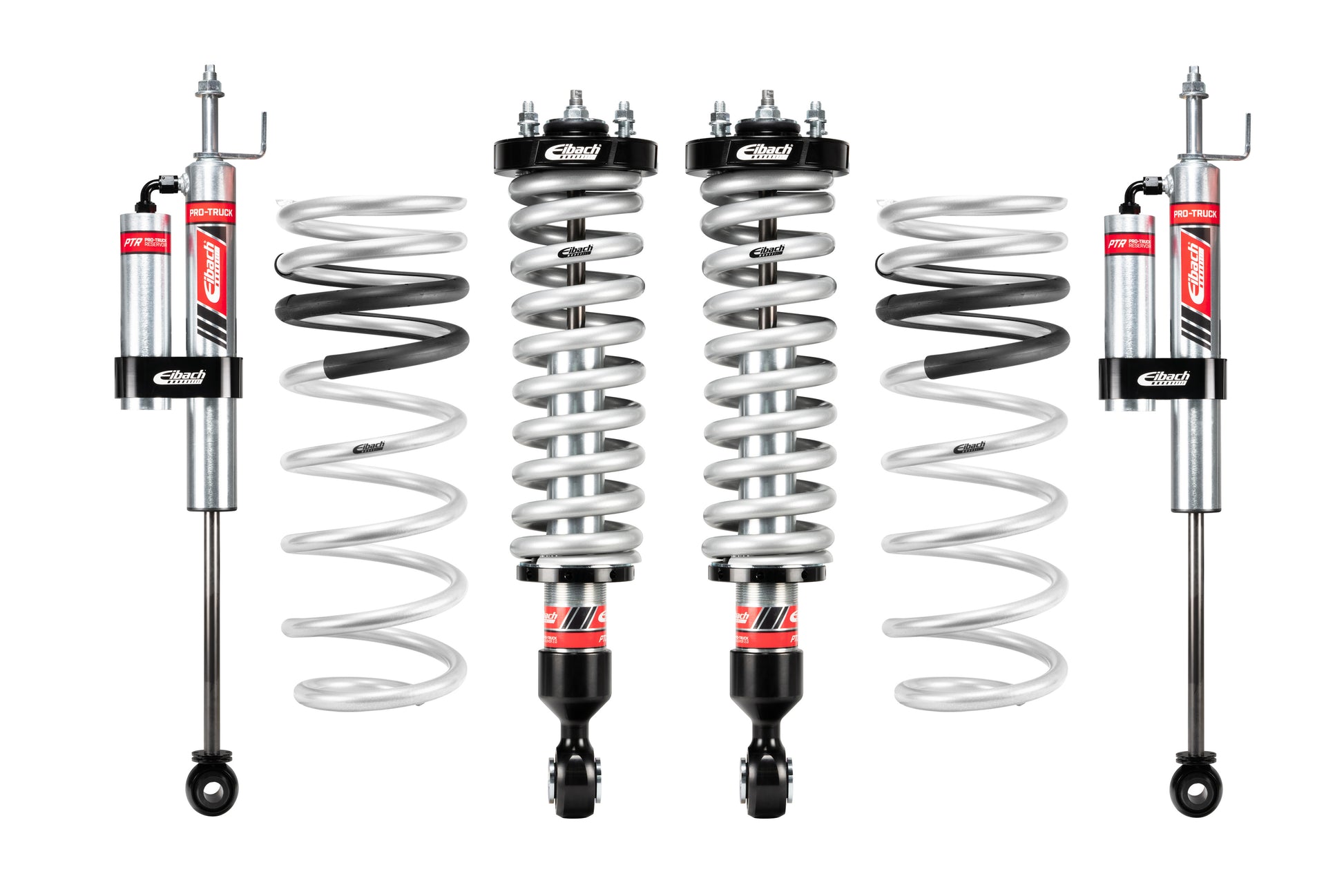

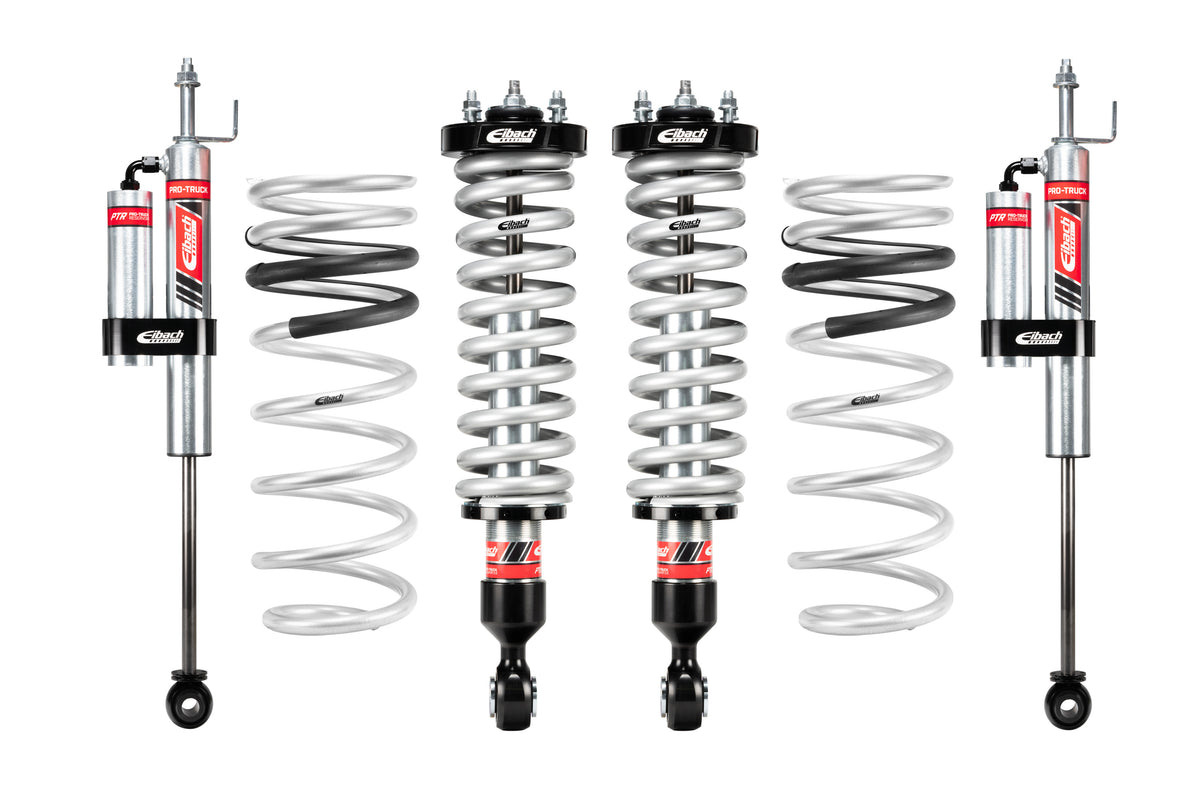

Stage 2R Kit — E86-82-096-02-22

• Pair of PRO-TRUCK Coilover 2.0 front coilovers
• Pair of external-reservoir rear PRO-TRUCK shocks
• Pair of PRO-LIFT-KIT rear springs
• Approximate lift for i-FORCE MAX Hybrid 4WD: +0.7" to +3.1" front / +0.7" rear
• External-reservoir rear shocks provide increased oil capacity and improved off-road performance

Key Features

• Complete matched suspension systems engineered specifically for the XK70 Toyota Tundra
• Improved ride height, tire clearance, handling and off-road capability
• Stage 2 and Stage 2R use height-adjustable PRO-TRUCK Coilover 2.0 front assemblies
• Stage 2R adds external-reservoir rear shocks for maximum off-road capability
• 46 mm piston monotube shock design with nitrogen-filled variable-force valving on applicable Stage 2 / Stage 2R components
• Individually dyno-tested dampers for matched performance and reliability
• Engineered, tested and manufactured by Eibach in the USA
• Two-year Eibach warranty

Fitment

2022-2026 Toyota Tundra SR, SR5, Limited and TRD Off-Road Crew Cab 3.4L i-FORCE MAX Hybrid 4WD XK70.

Important Notes

• Excludes vehicles equipped with Adaptive Variable Suspension (AVS).
• Stage 1 also excludes vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• For Stage 1, the listed front height is based on the Eibach spring installed on the bottom clip of the Eibach Sport shock. The second clip groove is intended for additional vehicle weight.
• For Stage 2 and Stage 2R, front ride height is set out of the box to level with the OE rear spring; additional preload is required to level with the included Eibach rear spring.
• Final ride height can vary depending on trim level, cab/bed configuration, added vehicle weight and accessories.
• Professional installation and wheel alignment after installation are recommended.
