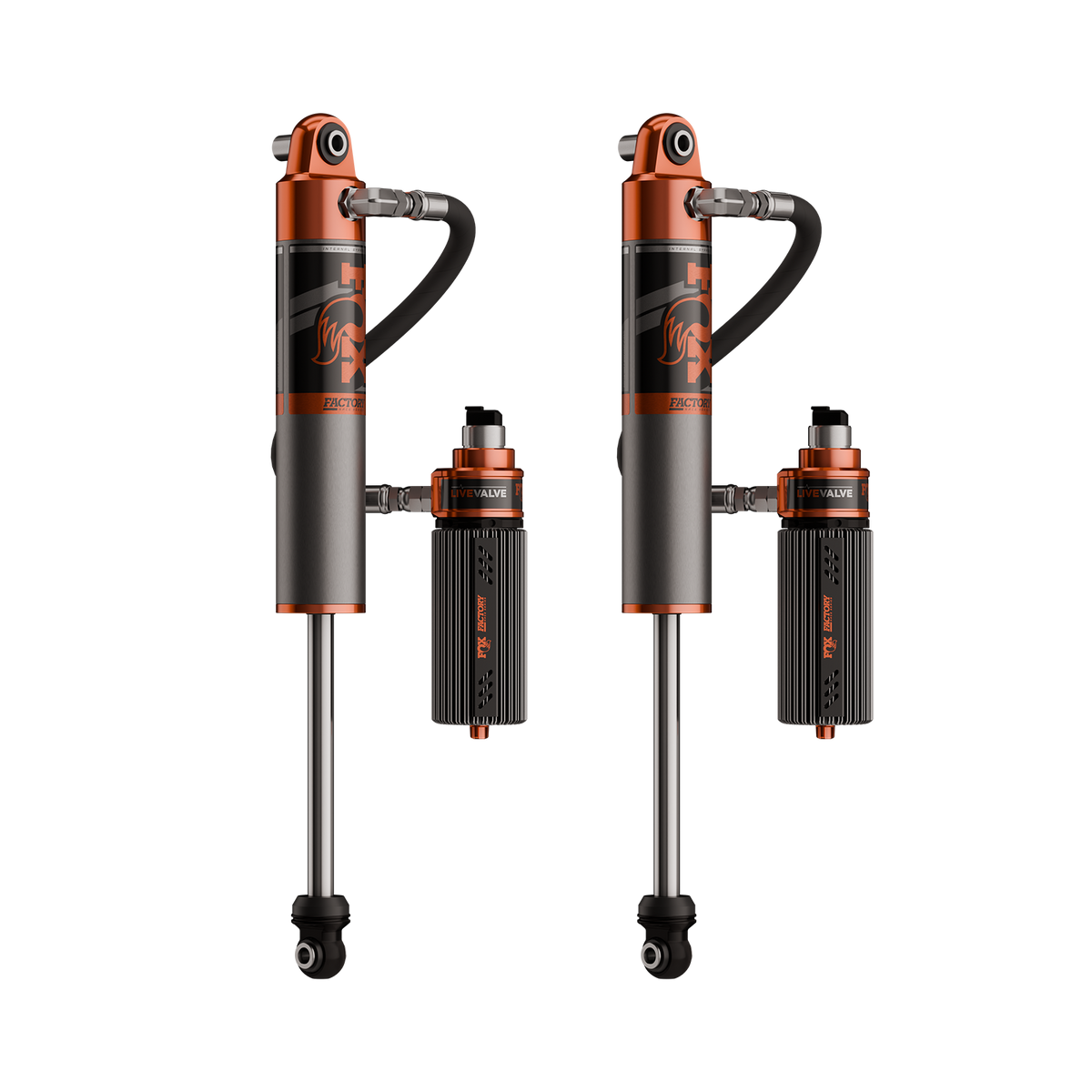

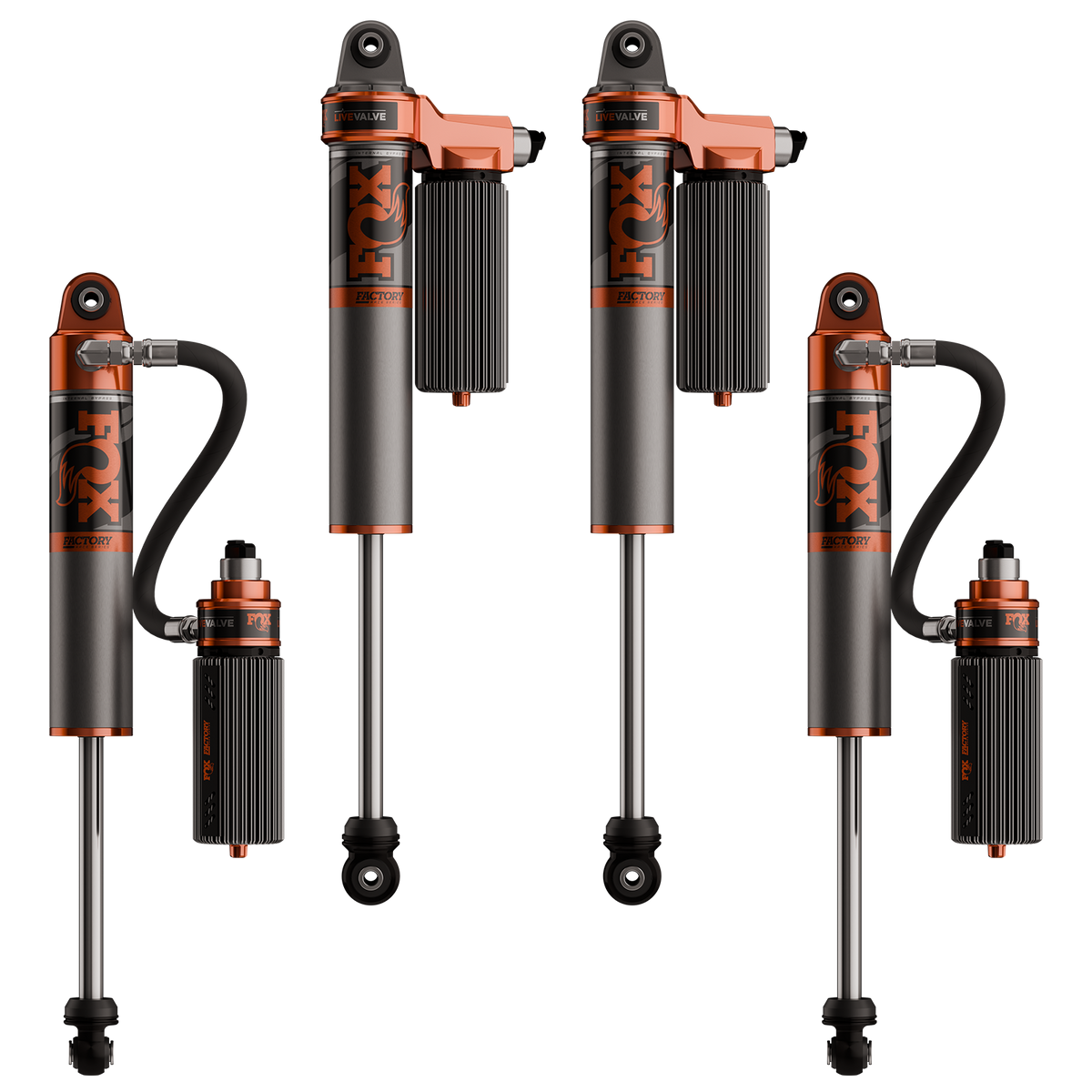

FOX Factory Race Series 3.0 Live Valve Internal Bypass Reservoir Shocks | 2018-2026 Jeep Wrangler JL | 3.5-4.5" Lift

The FOX Factory Race Series 3.0 Live Valve Internal Bypass Reservoir Shock Kit is a full-vehicle suspension package engineered for 2018-2026 Jeep Wrangler JL models running a 3.5-4.5 inch lift. Developed from FOX off-road racing technology, the system combines 3.0-inch internal bypass shock bodies, remote reservoirs and electronically controlled Live Valve damping for high-speed desert use, technical off-road driving and improved on-road control.

FOX Live Valve monitors terrain and driver inputs hundreds of times per second and automatically adjusts damping at all four corners. The aluminum shock bodies and external reservoirs improve heat dissipation during sustained use, while application-specific tuning is designed to deliver controlled body motion and consistent performance across changing terrain.

Key Features

• Full front and rear shock kit
• FOX Factory Race Series construction
• 3.0-inch smooth-body internal bypass design
• Live Valve connected electronic damping adjustment
• Remote reservoir configuration
• Vehicle-specific performance tuning
• Aluminum shock bodies for improved heat dissipation
• Black anodized CNC-machined aluminum components
• Designed for 3.5-4.5 inch lifted applications

Fitment

• 2018-2026 Jeep Wrangler JL 2-Door
• 2018-2026 Jeep Wrangler JL Unlimited 4-Door
• Lift range: 3.5-4.5 inches

Fitment Note: This application is not intended for Wrangler 4xe or Rubicon 392 models. A compatible front driveshaft may be required depending on vehicle setup and lift configuration.

Technical Specifications

• Series: Factory Race
• Shock Type: Smooth Body Internal Bypass
• Body Diameter: 3.0 inches
• Reservoir Type: Remote
• Adjuster Type: Live Valve Connected
• Front Compressed Length: approximately 17.00 inches
• Front Extended Length: approximately 27.07 inches
• Front Travel: approximately 10.07 inches
• Rear Compressed Length: approximately 18.93 inches
• Rear Extended Length: approximately 29.80 inches
• Rear Travel: approximately 10.87 inches
• Top Mount: Eyelet
• Bottom Mount: Eyelet

What's Included

• Front shocks - pair
• Rear shocks - pair

FOX Part Number: 883-26-160

Quadratec Part Number: 16335-5131

Warranty: Limited 1 Year
