FOX Factory Race Series 3.0 Live Valve Internal Bypass Reservoir Shocks | 2020-2026 Jeep Gladiator JT | 3.5-4.5" Lift

Note: Special order ETA 45 Days

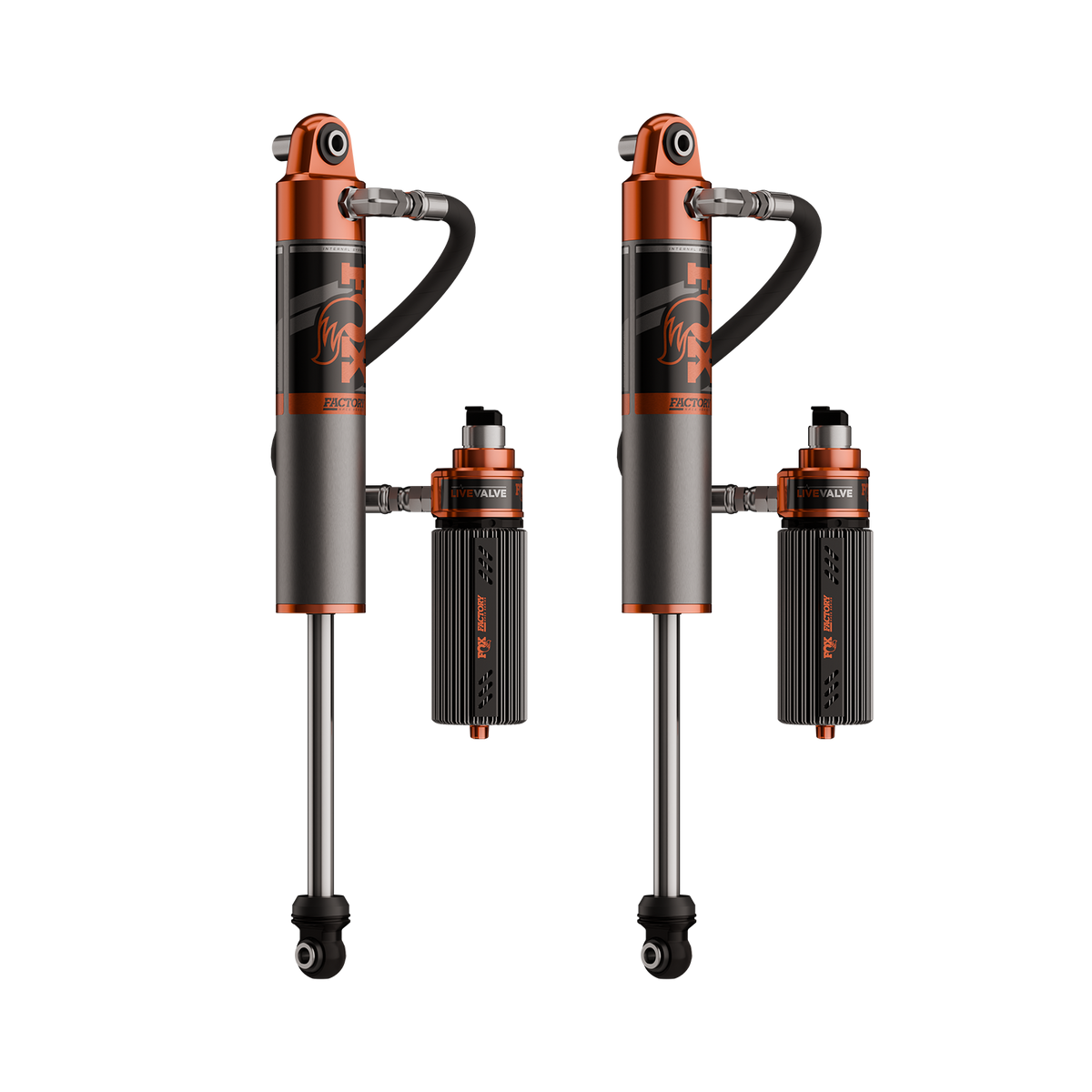

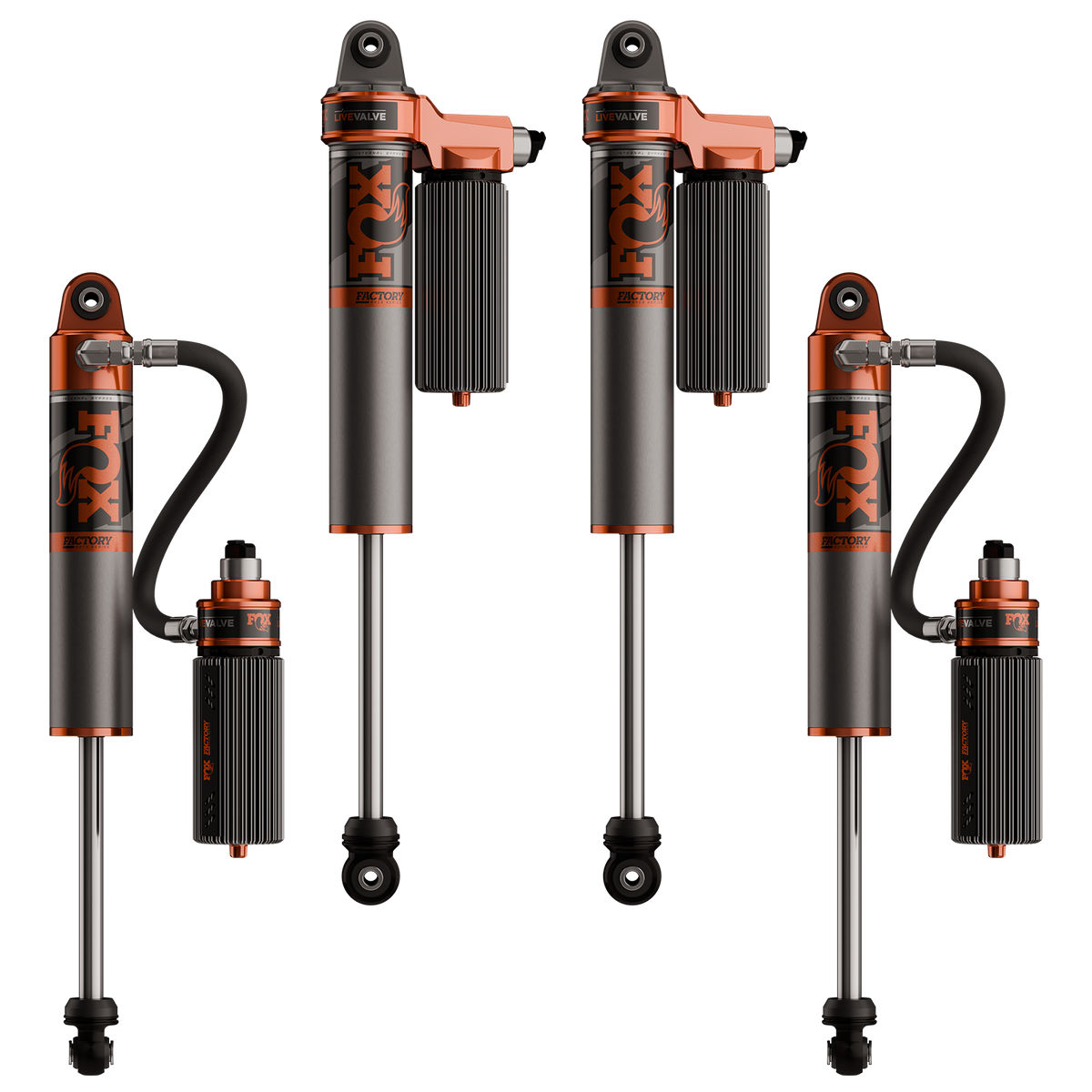

The FOX Factory Race Series 3.0 Live Valve Internal Bypass Reservoir Shock Kit is a complete front-and-rear suspension package engineered for 2020-2026 Jeep Gladiator JT models running a 3.5-4.5 inch lift. Built from FOX race-proven technology, the system combines 3.0-inch internal bypass dampers, remote reservoirs and electronically controlled Live Valve damping for technical off-road use, high-speed terrain and controlled on-road handling.

FOX Live Valve monitors terrain and driver inputs up to 400 times per second and continuously adjusts damping at all four corners. The aluminum shock bodies help dissipate heat quickly during sustained use, while vehicle-specific tuning delivers a broad usable damping range across pavement, gravel roads, rock crawling and rough terrain.

Key Features

• Complete front and rear shock package
• FOX Factory Race Series construction
• 3.0-inch smooth-body internal bypass design
• Live Valve connected electronic damping control
• Monitors terrain and driver inputs up to 400 times per second
• Remote reservoir configuration
• Aluminum shock bodies for improved heat dissipation
• Vehicle-specific tuning for Jeep Gladiator JT
• Eyelet upper and lower mounts
• Designed for 3.5-4.5 inch lifted applications

Fitment

• 2020-2026 Jeep Gladiator JT
• Lift range: 3.5-4.5 inches

Important Fitment Note: A compatible front driveshaft is required for this application. Verify suspension lift height and supporting components before installation.

Technical Specifications

• Series: Factory Race
• Shock Type: 3.0-inch Internal Bypass
• Reservoir Type: Remote
• Adjuster Type: Live Valve Connected
• Position: Front and Rear
• Top Mount: Eyelet
• Bottom Mount: Eyelet

What's Included

• Front shocks - pair
• Rear shocks - pair

FOX Part Number: 883-26-164

Quadratec Part Number: 16335-5132

Warranty: Limited 1 Year
