FOX Factory Race Series 3.0 Live Valve Internal Bypass Reservoir Shocks | 2021-2025 Jeep Wrangler 4xe / 392rangler JL 4xe & Rubicon 392 | 3.5-4.5" Lift

Note : Special order ETA 45 Days

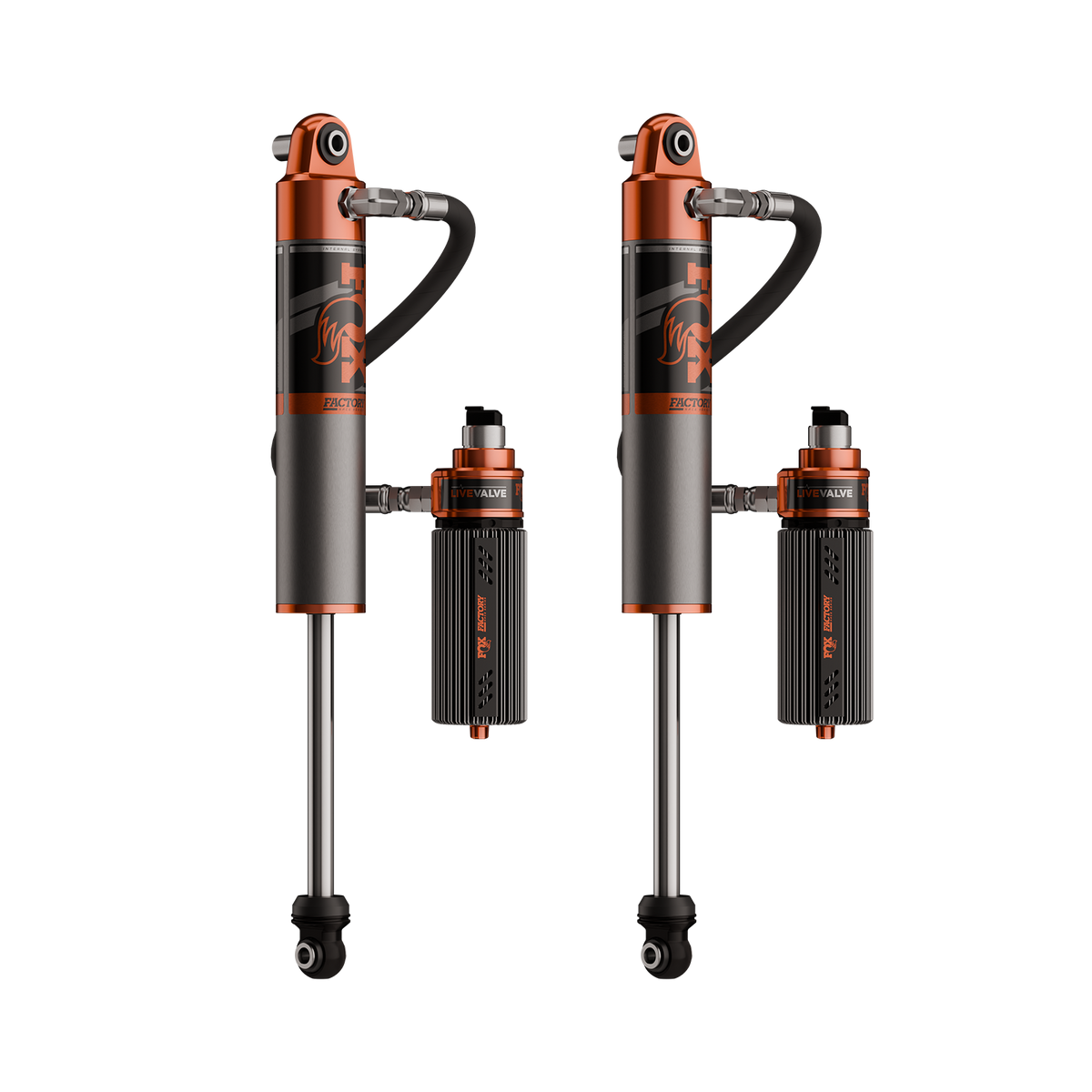

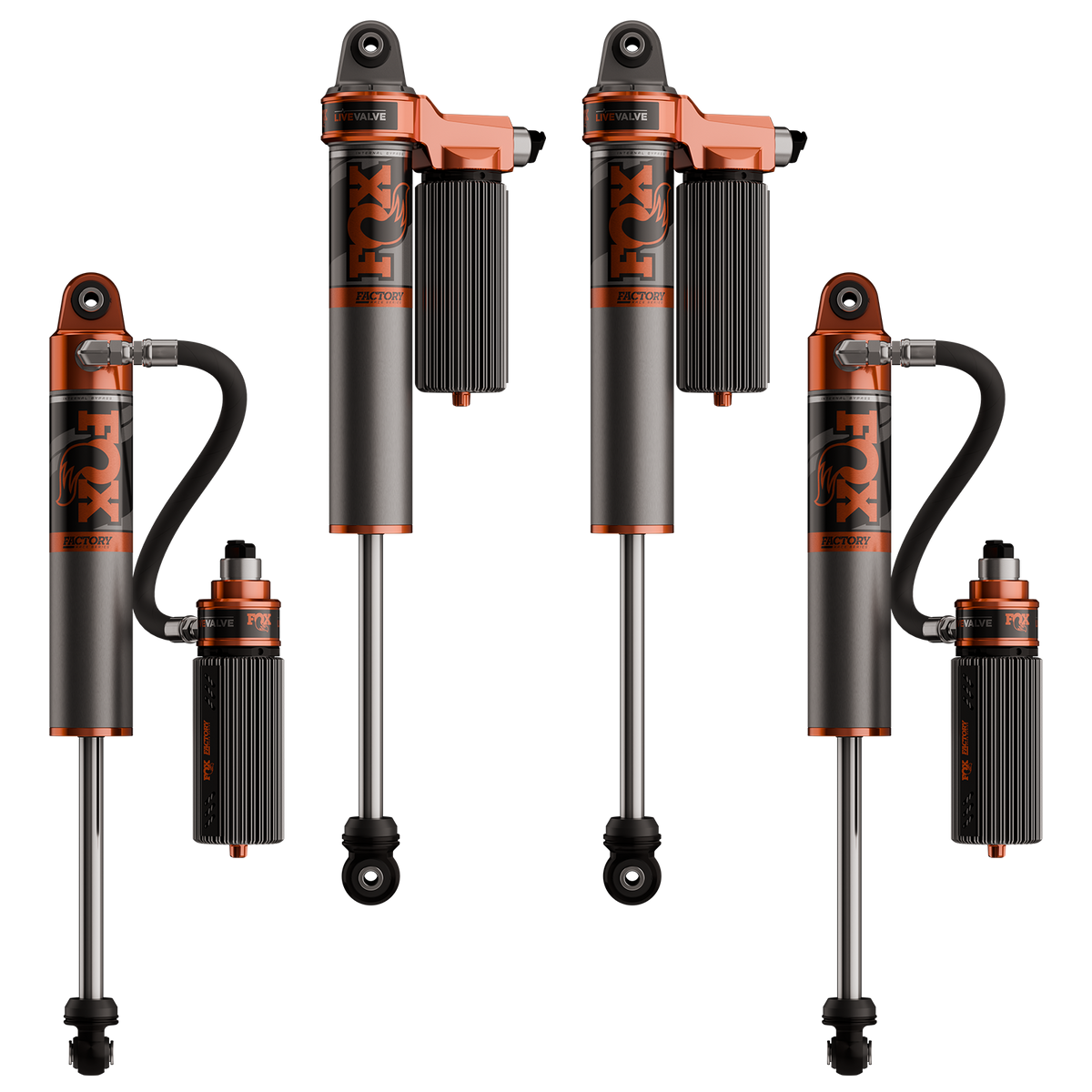

The FOX Factory Race Series 3.0 Live Valve Internal Bypass Reservoir Shock Kit is a full front-and-rear suspension package specifically tuned for the heavier Jeep Wrangler JL 4xe and Rubicon 392 platforms running a 3.5-4.5 inch lift. Built from FOX race-proven technology, the system combines 3.0-inch internal bypass dampers, remote reservoirs and electronically controlled Live Valve damping for high-speed off-road use, rock crawling and controlled on-road handling.

FOX Live Valve monitors terrain and driver inputs up to 400 times per second and automatically adjusts damping at all four corners. The HD vehicle-specific tune is designed around the additional weight and dynamics of the 4xe and Wrangler 392, while the aluminum shock bodies and finned remote reservoirs help manage heat during sustained use.

Key Features

• Complete front and rear shock package
• HD tune developed for Wrangler JL 4xe and Rubicon 392
• FOX Factory Race Series construction
• 3.0-inch smooth-body internal bypass design
• Live Valve connected electronic damping control
• Monitors terrain and driver inputs up to 400 times per second
• Remote reservoir configuration for improved heat management
• Aluminum shock bodies for fast heat dissipation
• Black-anodized CNC-machined aluminum components
• Designed for 3.5-4.5 inch lifted applications

Fitment

• 2021-2025 Jeep Wrangler JL 4xe
• 2021-2025 Jeep Wrangler Rubicon 392
• Lift range: 3.5-4.5 inches

Fitment Note: This part number is specifically tuned for 4xe and Wrangler 392 variants. Verify suspension lift height and supporting components before installation.

Technical Specifications

• Series: Factory Race
• Shock Type: 3.0-inch Internal Bypass
• Reservoir Type: Remote
• Adjuster Type: Live Valve Connected
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Position: Front and Rear

What's Included

• Front shocks - pair
• Rear shocks - pair

FOX Part Number: 883-26-158

Quadratec Part Number: 16335-5130

UPC: 692878902960

Warranty: Limited 1 Year
