Jaos

Jaos Battlez Lift Kit for LC76 Series 2008+ Model Year

Jaos Battlez Lift Kit for LC76 Series 2008+ Model Year

Regular price Dhs. 10,300.00 AED
Regular price Sale price Dhs. 10,300.00 AED
Sale Sold out
Shipping calculated at checkout.
Vehicle suspension features
Manufacturer name SECTION
Product name BATTLEZ Lift-up Set VFA Complete
Manufacturer Part Number A734241
JAN code 4948350209581
Automobile manufacturers Toyota
Car model Land Cruiser
Model 70 series
Year 2014/08~2015/07
Drive
Fitment details Yes (GRJ76)
- 2004/07 (HZJ76) cannot be installed

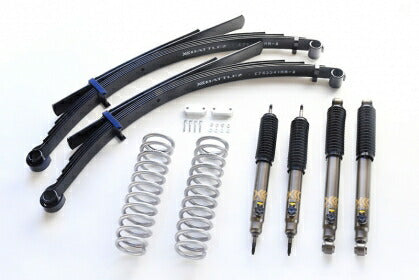

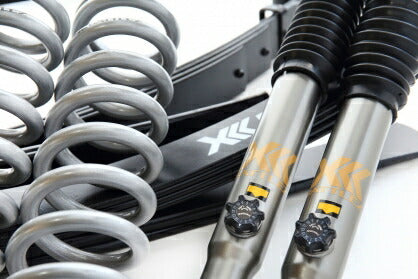

specification Product contents: Front coil spring, rear leaf spring, front damper, rear damper, front caster bush for lift-up vehicles, front stabilizer down block, front lateral rod, strength calculation sheet for rear leaf springs.
Vehicle height increase amount mm (F/R): 40-45/40-50. Wire
diameter φ (F/R): 15.5/-.
Spring rate N/mm (F/R): 37 (coil)/46 (leaf).
Type: Low pressure gas type twin tube damper, harmonic flex mechanism.
Damping force adjustment: 14-step dial adjustment.
Damping force 0.3m/sec/genuine ratio (F/R): extension side 0-40%, compression side -5-5%/extension side -35-10%, rear compression side -10-15%.
Stroke mm (F/R): +30/+20 (genuine ratio).
Body diameter φ (F/R): 54/54.
Piston diameter φ(F/R):30/30
Color:Silver (front coil)/Black (rear leaf)/Gray metallic (shock)
remarks Rear leaf: 6 leaf configuration.
Structural change procedure (modification application) is required. (Strength evaluation document included)
Rear LSPV bolt adjustment/extension may be required separately.
Sagging warranty included (front coil spring only).
Lateral rod: Turnbuckle adjustable, vehicle height +100mm compatible, silver
