Kinugawa

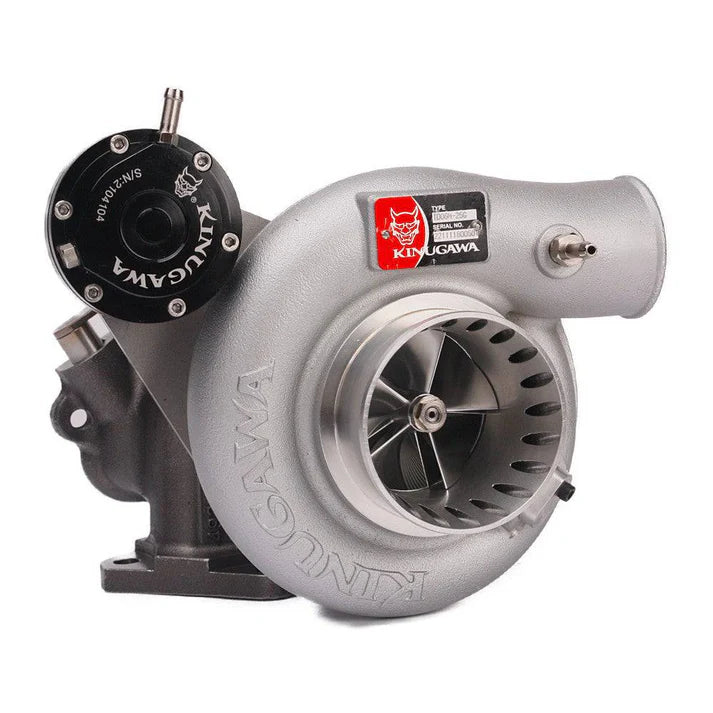

Kinugawa Turbo Ball Bearing 3" TD05H-16G for Subaru Impreza WRX STi GC GD GR
Kinugawa Turbo Ball Bearing 3" TD05H-16G for Subaru Impreza WRX STi GC GD GR
Regular price
Dhs. 5,400.00 AED
Regular price
Sale price
Dhs. 5,400.00 AED
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
- The factory turbocharger is feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the TD05H-16G Turbocharger. This is a great upgrade for those looking to make more power while maintaining great low to the mid-range response. This turbocharger can produce up to 350 WHP on a healthy engine with excellent throttle response. This is a great option for street and track duties.
Application
- 2002-2007 Subaru WRX
- 2004-2016 Subaru WRX STI vehicles
- 2004-2007 Subaru Forester
- It can replace TD04L WRX turbo, for IHI VF30, vf35 ... turbo directly without modification
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration
CHRA Size
- TD05-16G
Wheels Spec
- Compressor wheel: 48.3 / 68 mm (The 6+6 blades for low-end torque and the 11+0 blades for top-end speed)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"
Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57
- Inlet: Subaru single scroll
- Outlet: Subaru 5-bolt
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
- Inlet: 3"
- Outlet: 2"
Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57
- Inlet: Subaru single scroll
- Outlet: Subaru 5-bolt
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The Set Includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 5 x Stud And Nut Set
- 1 x Turbocharger
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
