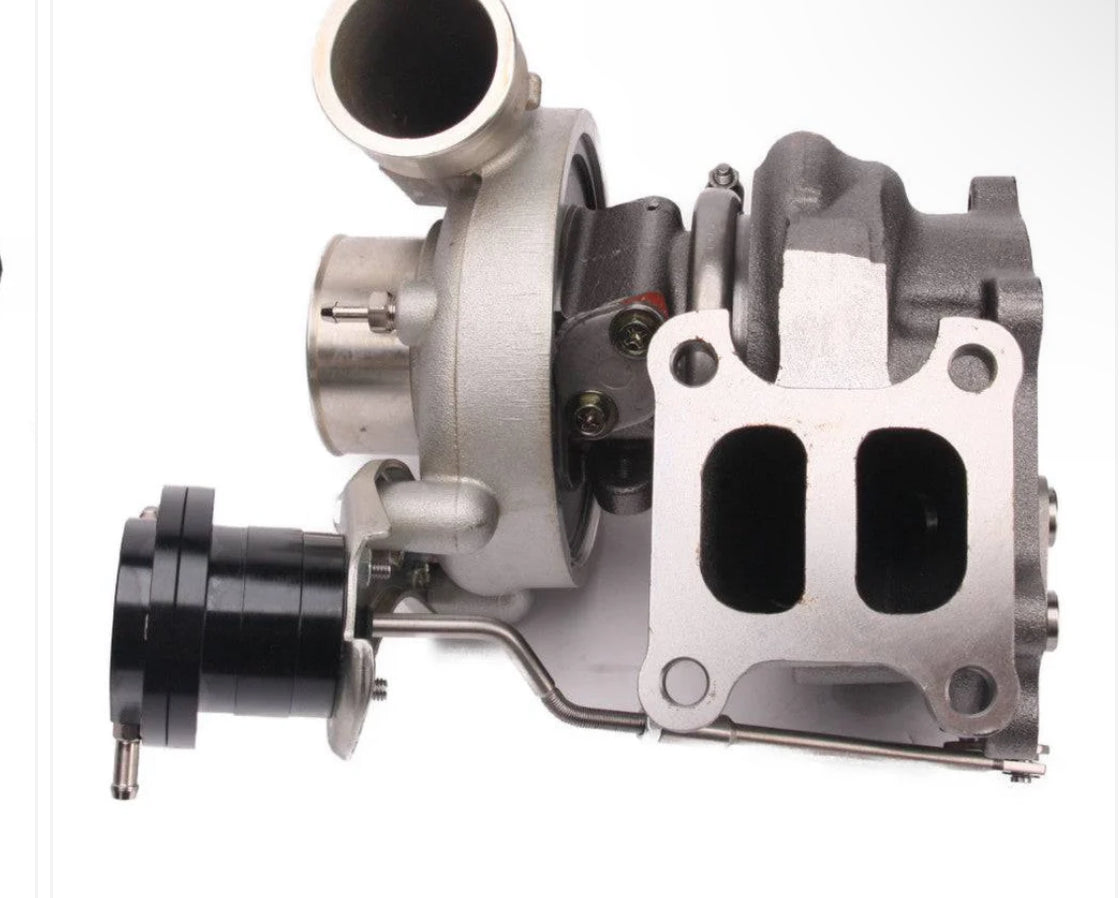

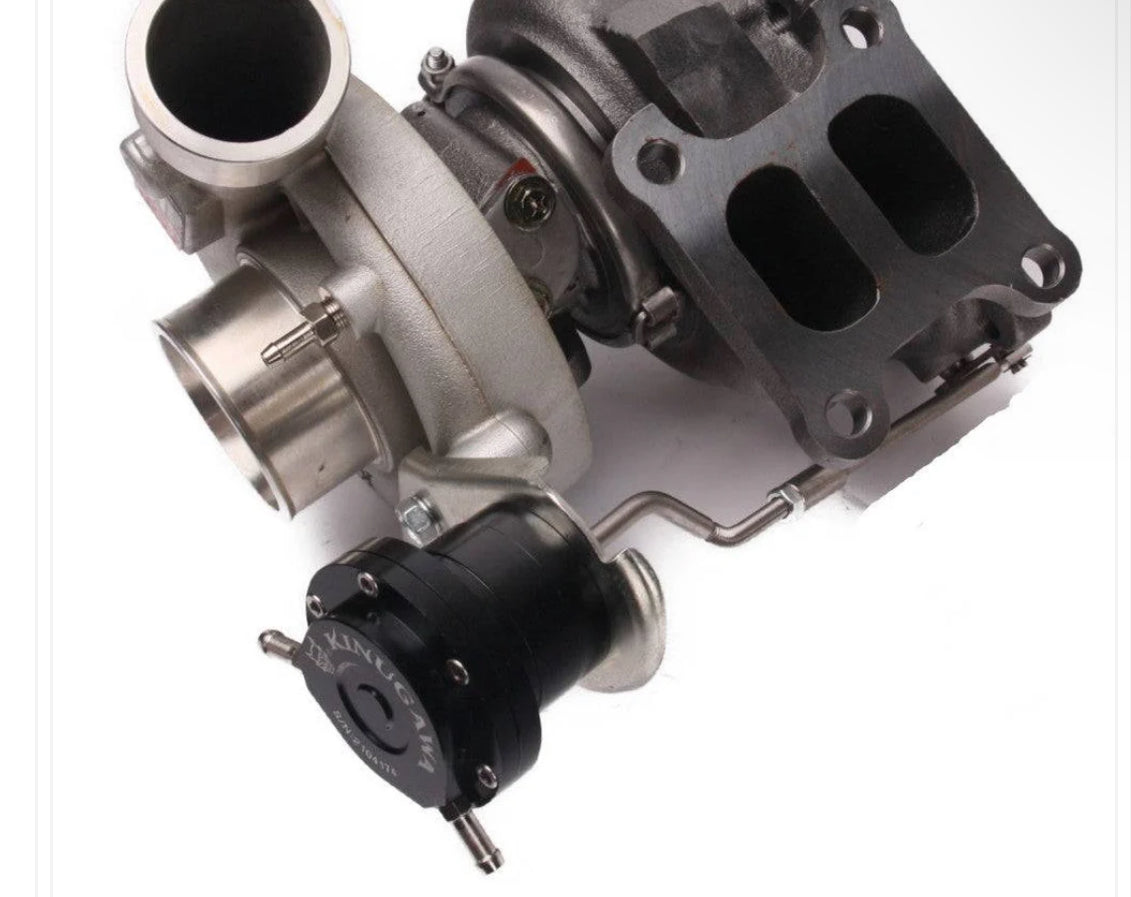

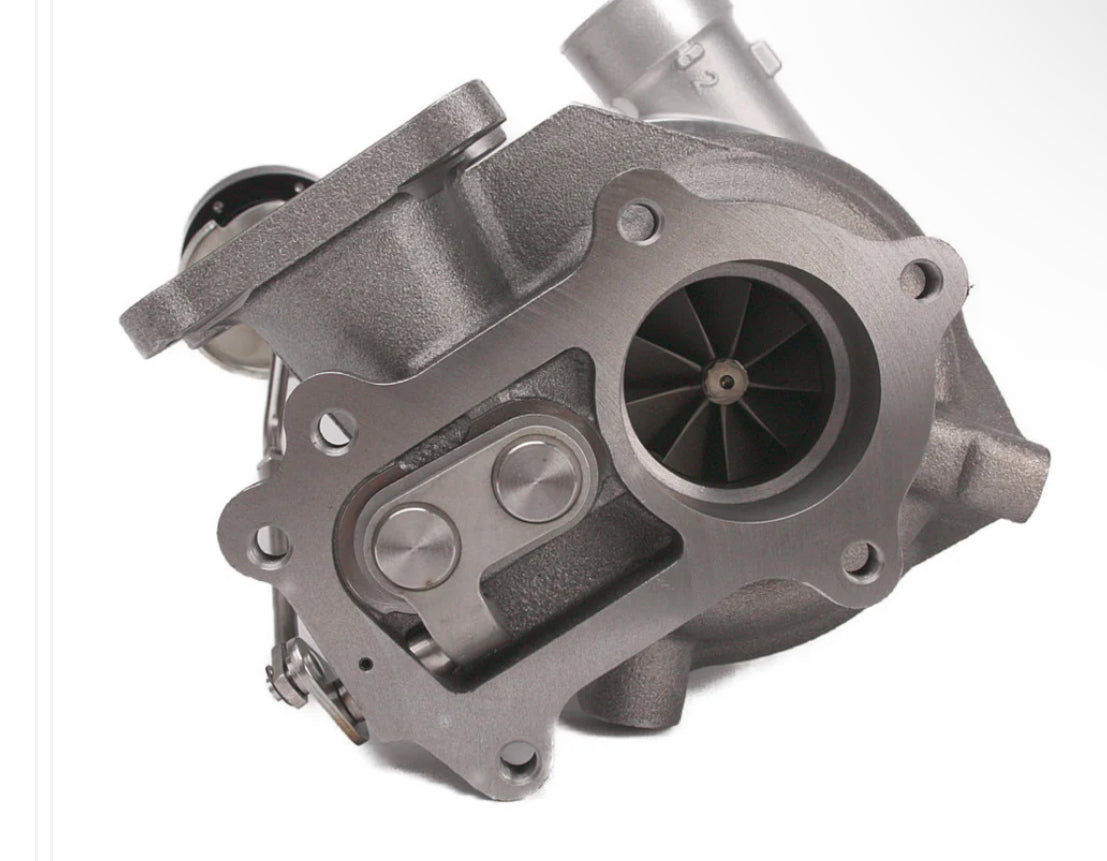

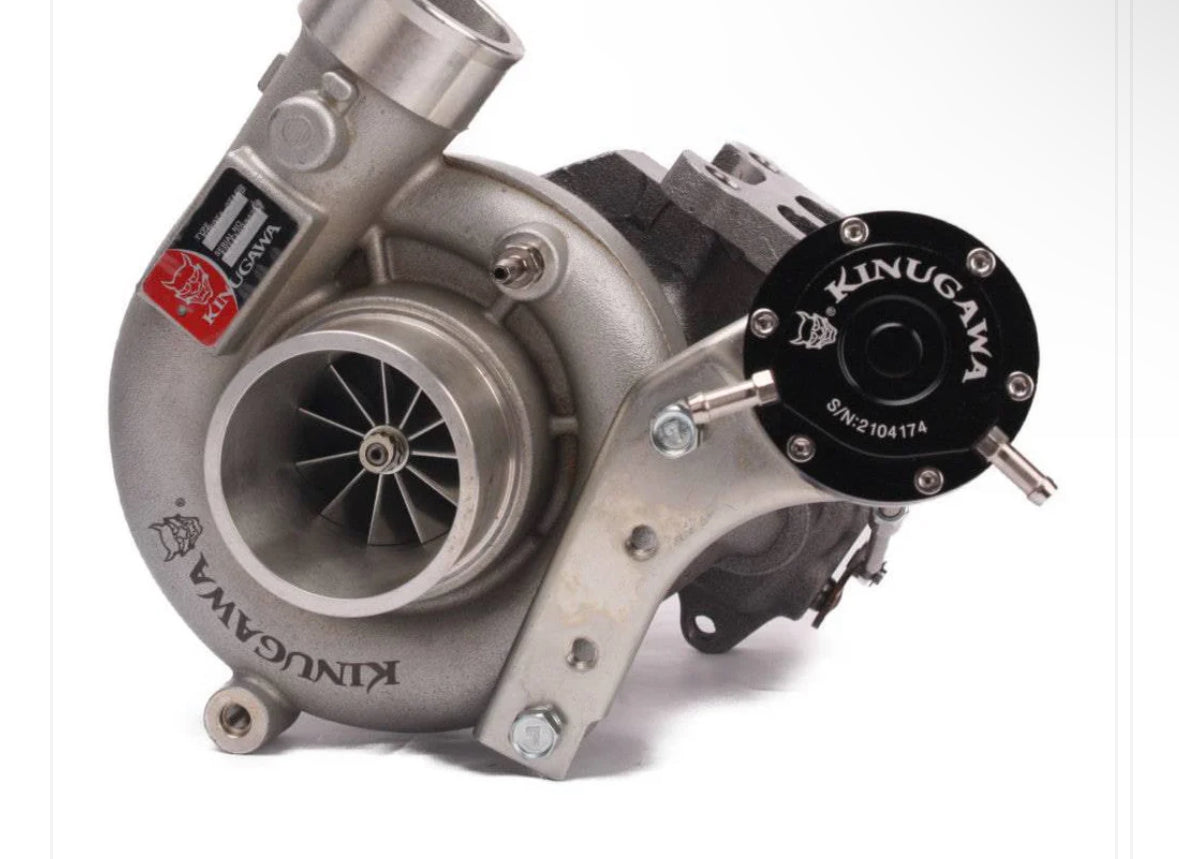

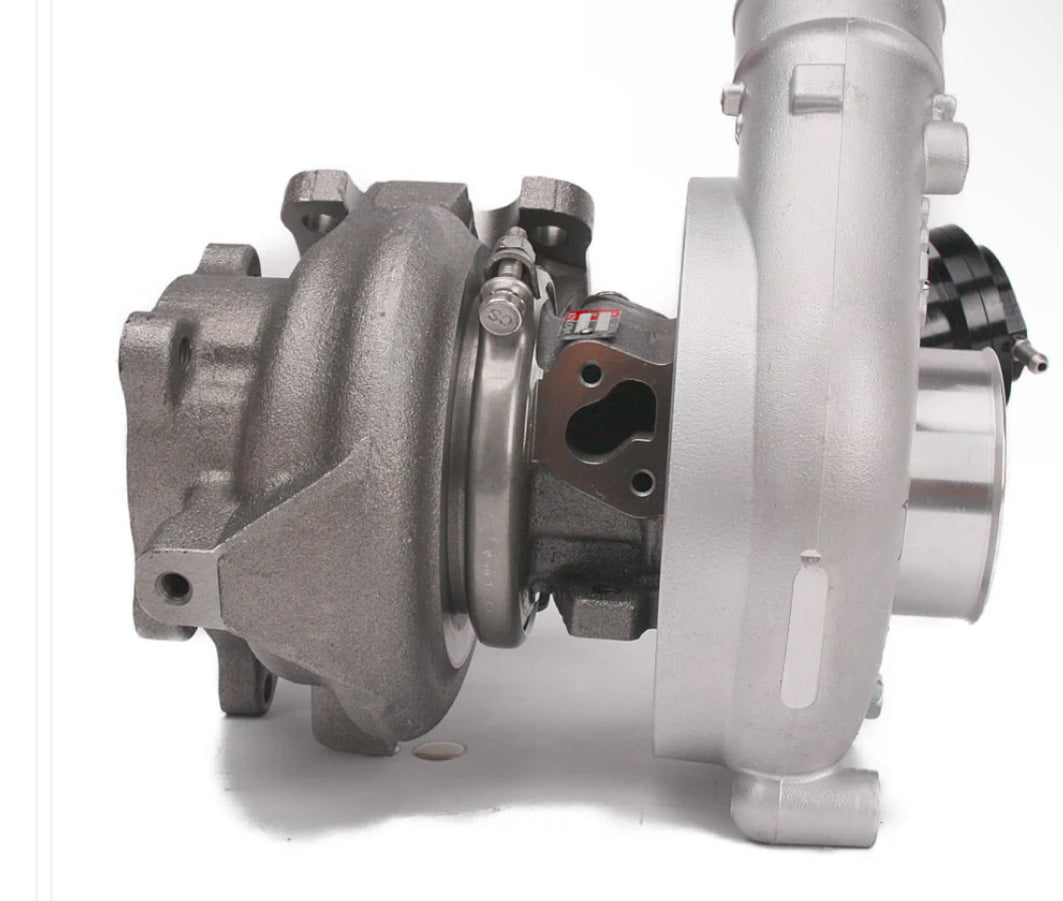

Kinugawa Turbo CT26-GT3071R for Toyota 3S-GTE Celica GT4 ST185 ST205 MR2 Twin Scroll

Application
- For TOYOTA 3SGTE / 3S-GTE Celica ST185 / SW20 Series 1/2/3
- 89.9 ~ 93.10 ST185
- 91.10 ~ 92.4 ST185RC
- 94.2 ~ 99.8 ST205
- 89,12 ~ 93,11 SW20 series 1 & 2
- 93,12 ~ 99,8 SW20 series 3
- 1990~1993 Celica ST185 MR2 (1990–~992 Turbo) MR2 (North America 1991~1995)
- 1994~1999 Celica ST205 MR2 (Japan, 1993+ Turbo)
- For TOYOTA 3S-GTE ST185, ST205, and SW20 with CT20B or CT26 twin-scroll turbo.
Because this custom housing is made to bolt to the stock manifold and downpipe, this means you can use your aftermarket downpipe and intercoolers setup as long as they are made to work with the stock CT2x turbo (CT26/CT20b/CT21/CT27/etc.).

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.

- Don't fit generations 4 ST215 & 5 ST246, in which the exhaust housing is cast into the cylinder exhaust manifold, rather than the normal practice of a separate turbine housing after the cylinder exhaust manifold.

Wheels spec
- Compressor wheel: 53.1/71 mm (The 6+6 is better for low-end torque, and 11+0 for top-end speed)

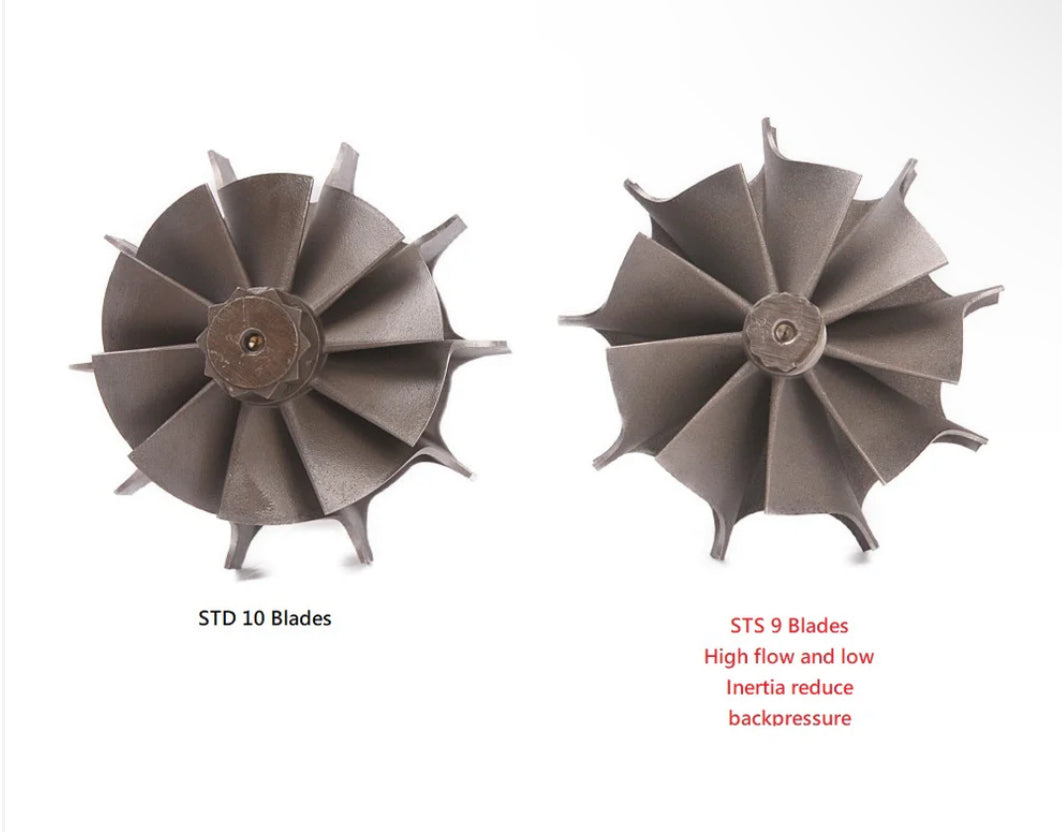

- Turbine wheel: 51.9 / 67.9 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)

Compressor Housing
- Bolt-on stock type

Turbine Housing
- Bolt-on stock type
- Wastegate: internal gated

Bearing Type
- Journal Bearing

Cooling Type
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

The Set Includes
- 1 x turbocharger
- 1 x turbine inlet gasket
- 1 x turbine outlet gasket
- 1 x oil feed and return gasket
- 2 x water coolant gasket
- 10 x stud and nut set
- 1 x 20cm vacuum
- 1 x Balance Report with anti-counterfeit tags

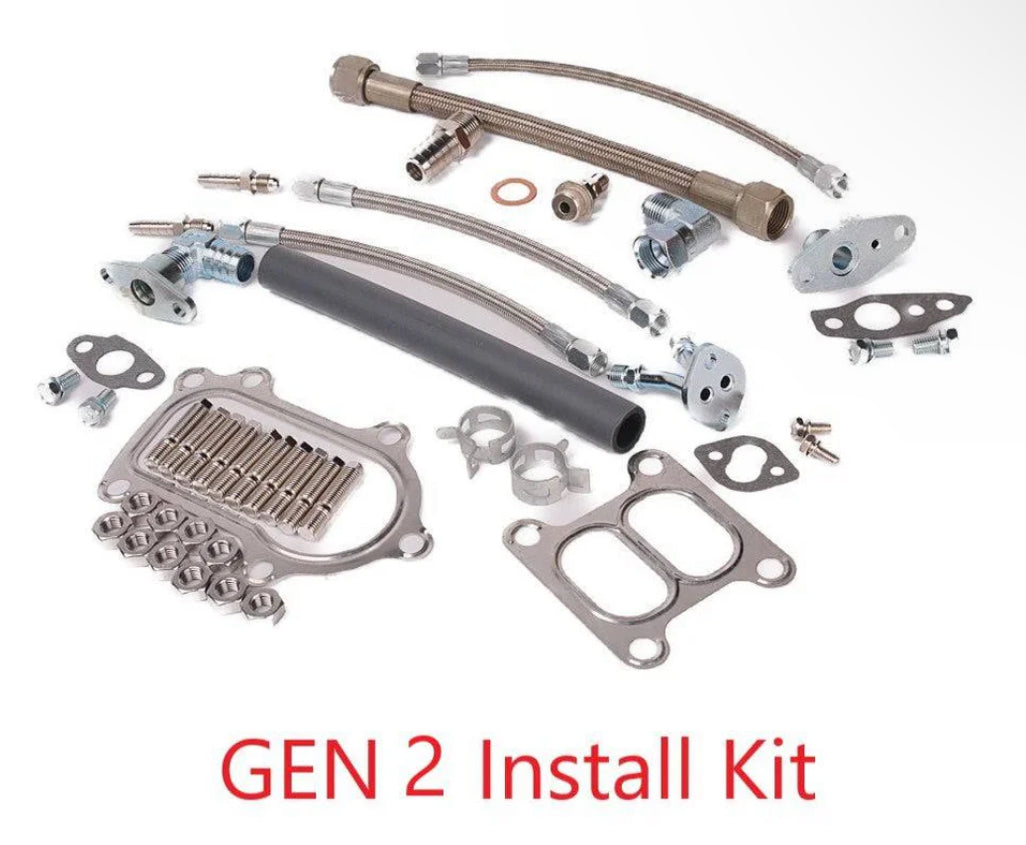

[Gen II install kit instruction]

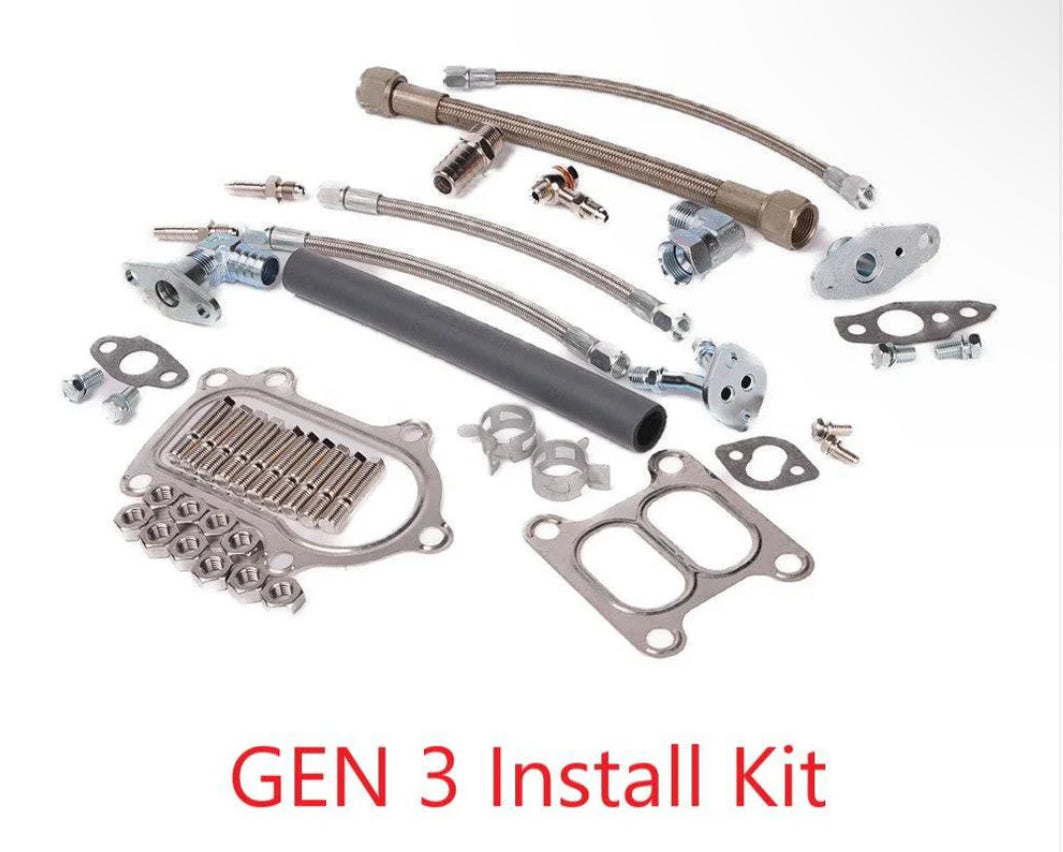

[Gen III install kit instruction]

Situation
- Brand New

Provider
- Kinugawa Turbo Systems

Warranty

Supports 400-450 hp

Made by Garret Subcontractor 12 month Warranty
