Kinugawa Turbo CT26 Land Cruiser Toyota Land Cruiser 1HZ 75 79 80 100 105
Kinugawa Turbo CT26 Land Cruiser Toyota Land Cruiser 1HZ 75 79 80 100 105
Regular price
Dhs. 4,600.00 AED
Regular price
Sale price
Dhs. 4,600.00 AED
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

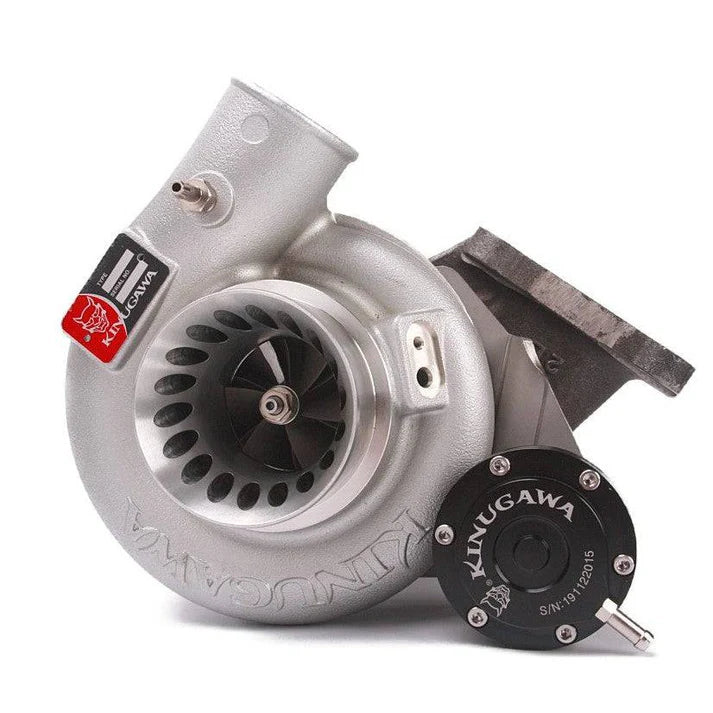

Kinugawa Toyota 1HZ diesel td05h-16g spec turbocharger with 3" inlet cover and 7cm Bolt-on turbine housing provide ultimate spool time than ever (The stock is 8cm). The turbocharger is equipped with CT26-based turbine housing (inlet and outlet type), the same as the factory turbocharged 1HD-T Land Cruiser engine. If you have an HZJ80 series, a factory 3″ exhaust system will fit straight on; the turbocharger is the same bolt pattern as the factory turbocharger and is in the same factory location. The turbo comes with a laser-cut flange plate that converts a 1HZ stock manifold to suit the Toyota CT26 flange turbo. This convenient kit hopefully saves you from buying and installing a new manifold.
Application
- 75/78/79/80/100/105 series
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.5 / 68.0 mm (The 6+6 blades is better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"
- Inlet: 3"
- Outlet: 2"

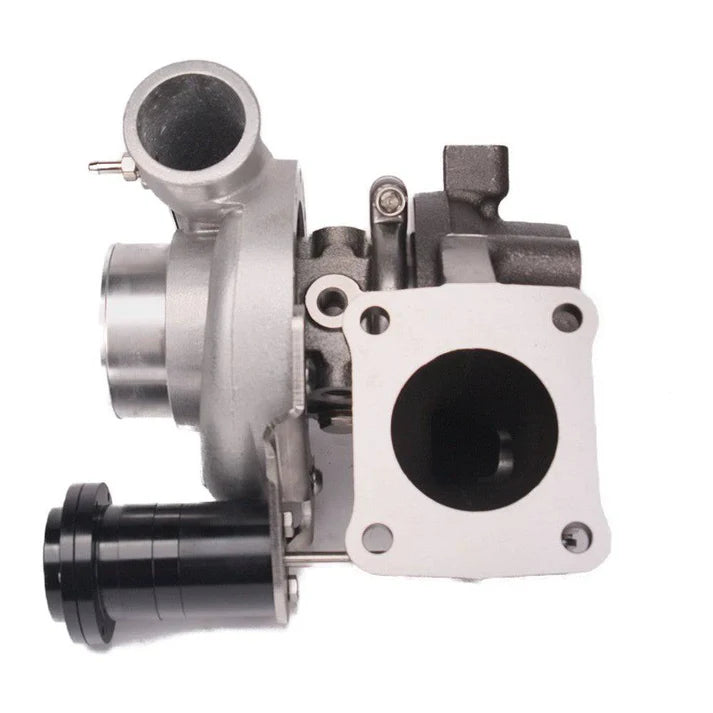

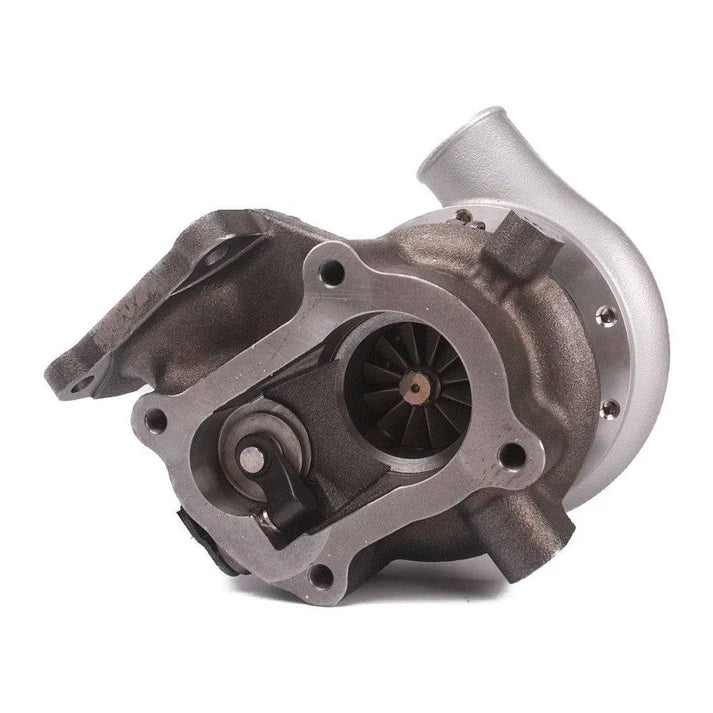

Turbines Housing
- Nozzle area: 7cm / AR.49 (faster spool than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

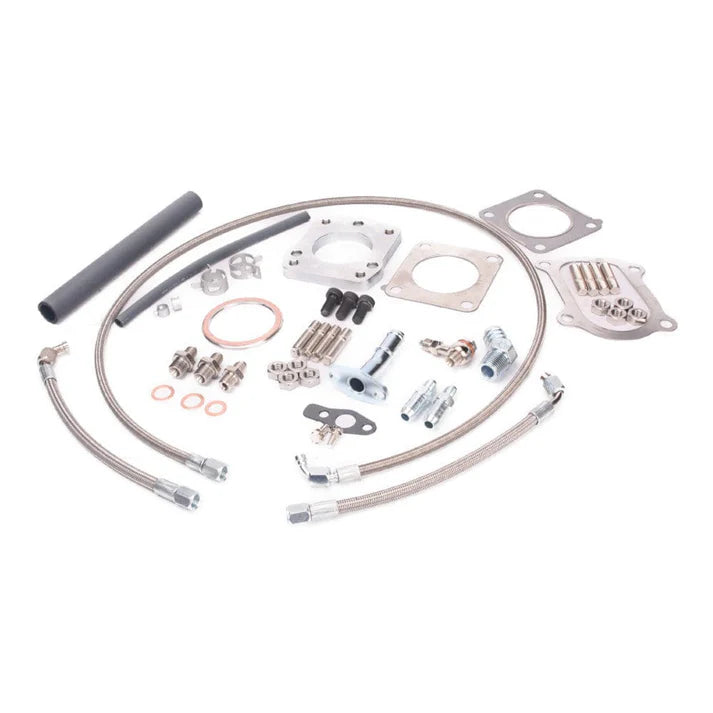

The Set Includes
- 1 x Turbocharger
- 1 x Turbocharger
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x Turbo Flange Adapter for Toyota Land Cruiser 75 79 80 100 105 (#412-07001-002~)
Install Kit Instruction
Situation
- Brand New
- Full balance from Schenk MBRS 950 110 Germany
Provider
- Kinugawa Turbo Systems
Turbo recommended power capacity.
- TD05H-16G = Suitable up to 200HP
- TD05H-18G = Suitable for 200-250HP
- TD05H-20G = Suitable for 250-300HP (IF POWER GOAL IS 250HP, PLEASE SELECT THIS TURBO)
- TD05H-16K = Suitable for 250-330HP
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
