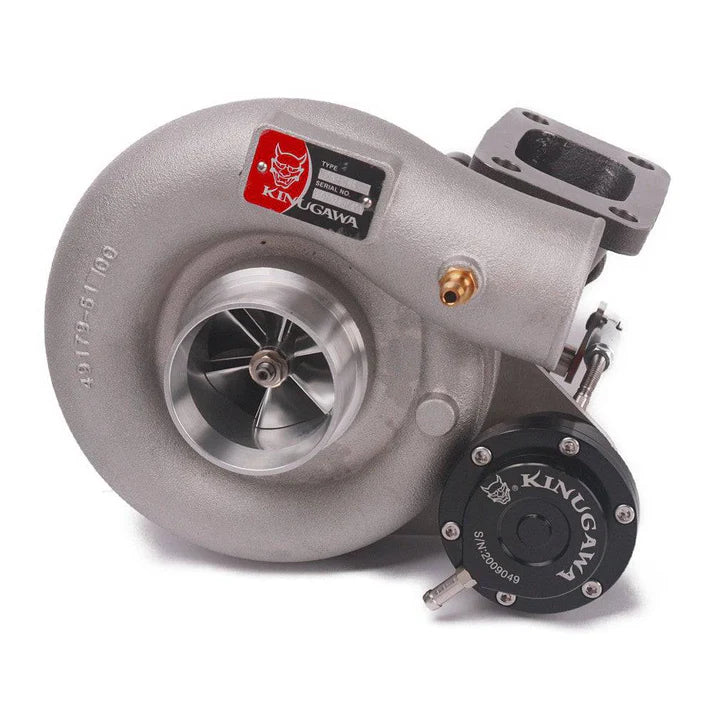

Kinugawa Turbo for Nissan Skyline RB20DET RB25DET TD05 TD06 Ball Bearing
Kinugawa Turbo for Nissan Skyline RB20DET RB25DET TD05 TD06 Ball Bearing
Regular price
Dhs. 5,200.00 AED
Regular price
Sale price
Dhs. 5,200.00 AED
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Suitable for
RB20DET RB25DET R31 R32 R33 R34
Compressor Housing
- Nozzle area: AR.60
- Inlet: 61mm / 2.4"
- Outlet: 51mm / 2"
- Inlet: 61mm / 2.4"
- Outlet: 51mm / 2"
Turbine Housing
- Nozzle area: 8cm / AR.57; 10cm / AR.73 (optional)
- Inlet: T3
- Outlet: 6 bolt RB20DET / RB25DET type
- Wastegate: internal gated
- Inlet: T3
- Outlet: 6 bolt RB20DET / RB25DET type
- Wastegate: internal gated
Bearing Type
- Journal Bearing with a 360-degree performance thrust bearing kit for durability.
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New
The set includes
- 1 x Turbocharger
- 1 x Oil set for oil supply
- 1 x Oil set for oil supply
- 1 x drain pipe kit
- 2 x coolant supply line
- 2 x Turbine gasket (inlet + outlet)
- 6 x starting kit
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Made by Garret Subcontractor 12 month Warranty
