Kinugawa

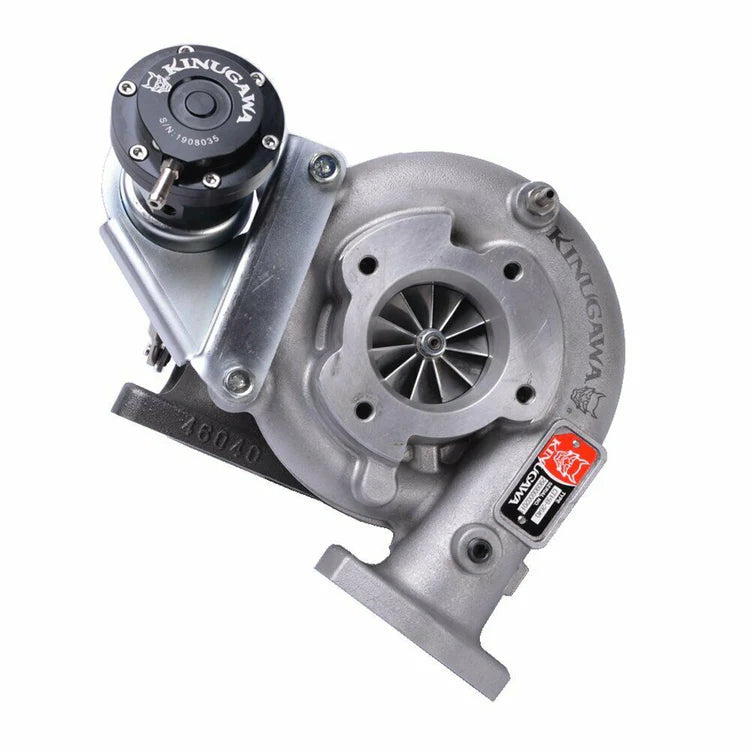

Kinugawa Turbo Systems upgrade bolt-on single-type CT15B 1JZ-GTE

Kinugawa Turbo Systems upgrade bolt-on single-type CT15B 1JZ-GTE

Regular price Dhs. 4,600.00 AED
Regular price Sale price Dhs. 4,600.00 AED
Sale Sold out
Shipping calculated at checkout.
Turbine Wheel Type 10
Compressor Wheel
Just keeping your stock exhaust manifold and compressor interface, and at boost levels below 14PSI, it can be run on a stock ECU and fueling. With the proper supporting mods, however, this responsive option will still allow for 300HP-320HP.

Initially, our aim is simple, easily customized turbocharger options that are well matched to the low and mid-range volumetric efficiency of these engines for motorsports usage as the VVT-i IJZ engine had improved the low and mid-range power from the previous 1st generation 1jz. It has a comparative reduction in top-end power output, so we optimized it for stock-like response and low-mid-range torque. Still, without the reliability issues and poor top-end power of the OEM Turbo, this is a perfect option for a reliable street or drifting car.

  • Toyota Chaser/Cresta/Mark II Tourer V/Roulant G (JZX90, JZX100)
  • Toyota Mark II iR-V (JZX110)
  • Toyota Mark II Blit iR-V (JZX110W)
  • Toyota Soarer 2.5 GT-T(JZZ30)
  • Toyota Verossa VR25 (JZX110)
  • Toyota Crown Athlete V (JZS171)
  • Toyota JZX100 / JZX110 / JZX110W / JZZ30 Late Model / JZS171 / JZS171W
  • JZA70 Supra (Custom Manifold required)
Wheels Spec
- Compressor wheel: 45.9 / 64.9 mm with extended tip 68.74mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
Kinugawa Turbo Systems Billet Compressor Wheel and 360 Dynamic Thrust Bearing
- Turbine wheel: 48 / 59.8 mm (stock type)

Bearing Type
- Journal Bearing with the performance 360-degree thrust bearing kit

Cooling Type
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

The set includes
- 1 x turbocharger
- 1 x turbine inlet/outlet gasket
- 1 x oil and water supply kit


Made by Garret Subcontractor 12 month Warranty
