Baja Design

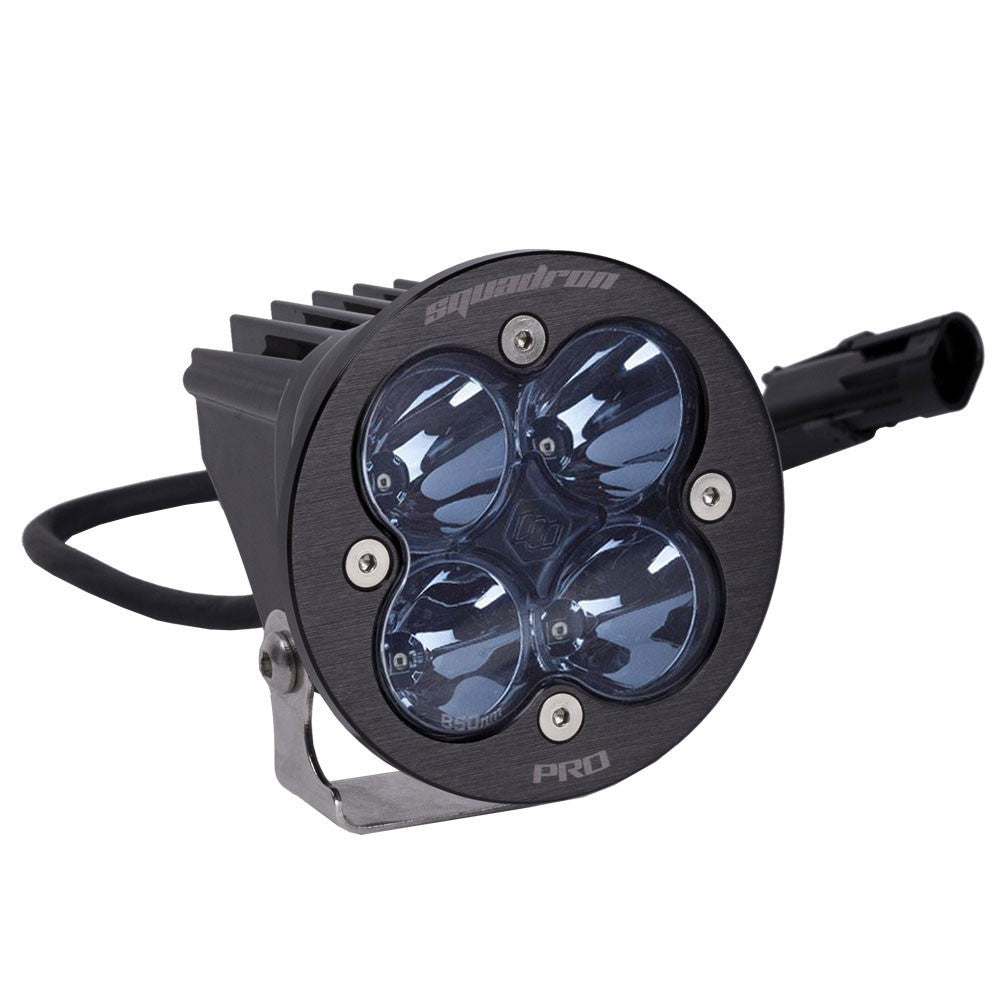

Military Grade Squadron-R Pro Infrared LED Light Pod - Universal (Special Order)
Military Grade Squadron-R Pro Infrared LED Light Pod - Universal (Special Order)
Couldn't load pickup availability
Description
Although compact at 3 inch by 3-inch housing, don’t be fooled by its size. The Squadron-R Pro IR from Baja Designs comes in 850nm and is more powerful than most larger lights on the market today. While compact in size the Squadron-R Pro IR is equipped with our round bezel and a sleek black gloss aluminum housing that outshines the competition through both appearance and performance. This light is perfect for covert applications such as military, hunting, or where stealth is needed during the night while using night vision goggles, or NODs. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659 NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses and Optics
SKU: 597073
Dimensions
| Depth (in.) | 2.76 |
| Height (in.) | 3.07 |
| Length (in.) | 3.07 |
| Weight (lbs.) | 0.75 |
Specifications
| Amperage Rating (A) | 1.73 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Description | Round; Driving/Combo; IR 850nm |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Infrared |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High (1800mW) |
| Lighting Quantity | 4 |
| Lighting Technology | Osram 850nm LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron-R Pro Infrared LED Light Pod |
| Wattage (W) | 24 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
