Raceline Aero HD Wheels For Truck & SUV (Price Per Wheel)

Dhs. 1,362.90 AED

Sale Sold out

Shipping calculated at checkout.

Patent #D1023887

• Aggressive rally inspired multi-spoke 12 window design
• Smooth stepped outer lip feature adds a retro feel to the design
• Color matched snap in cap with debossed Raceline logo
• Constructed out of heavy duty A356 aluminum

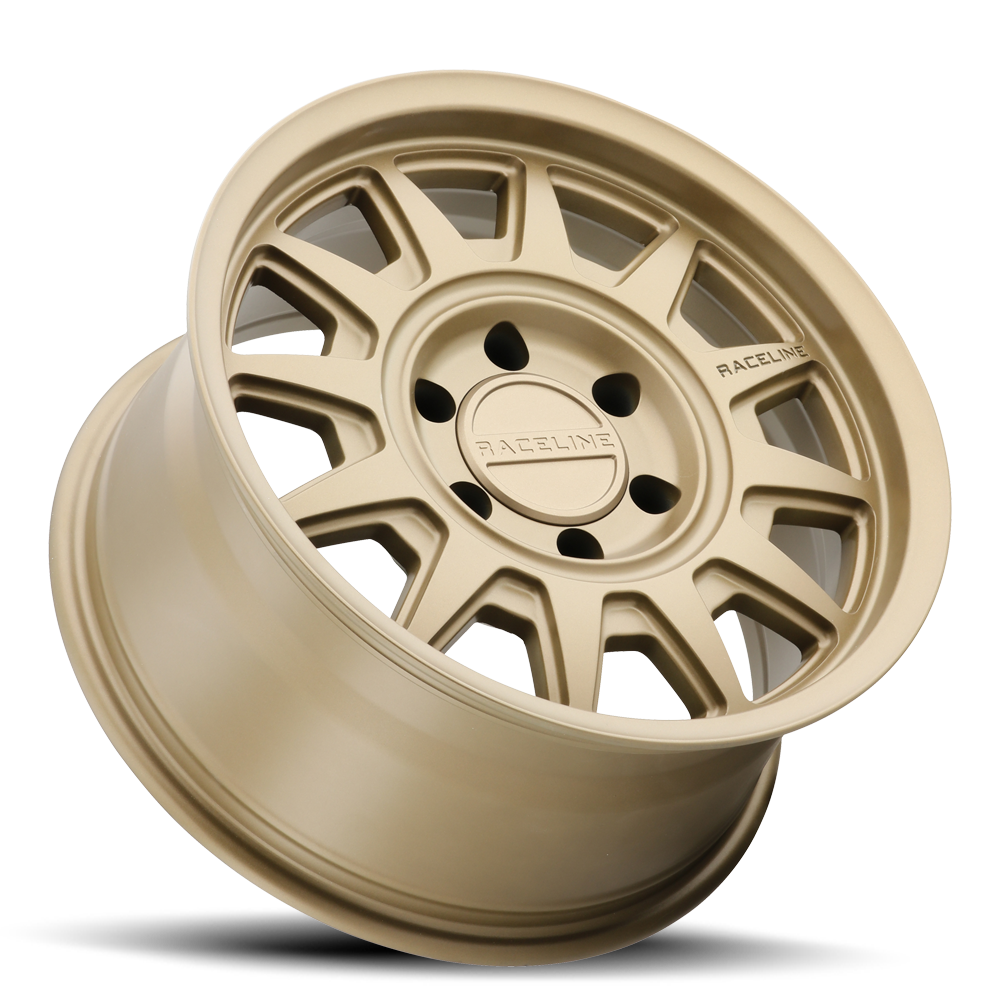

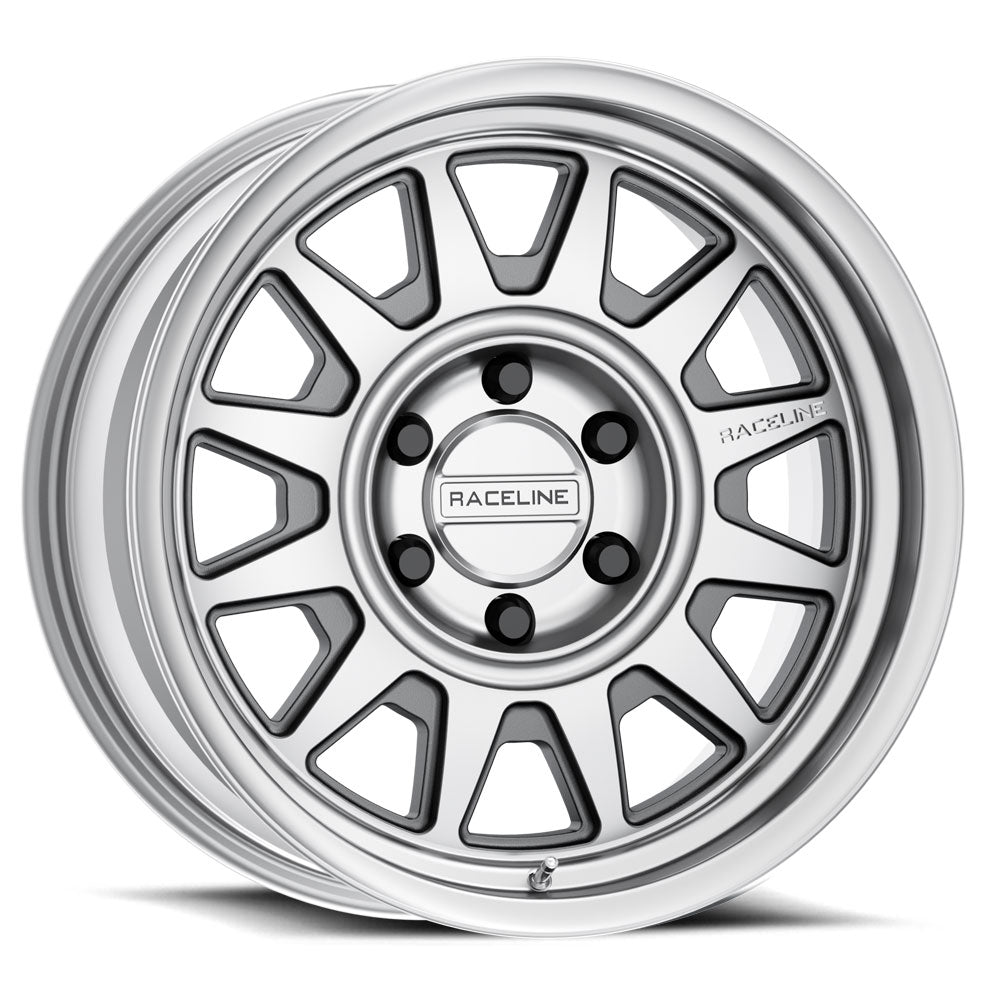

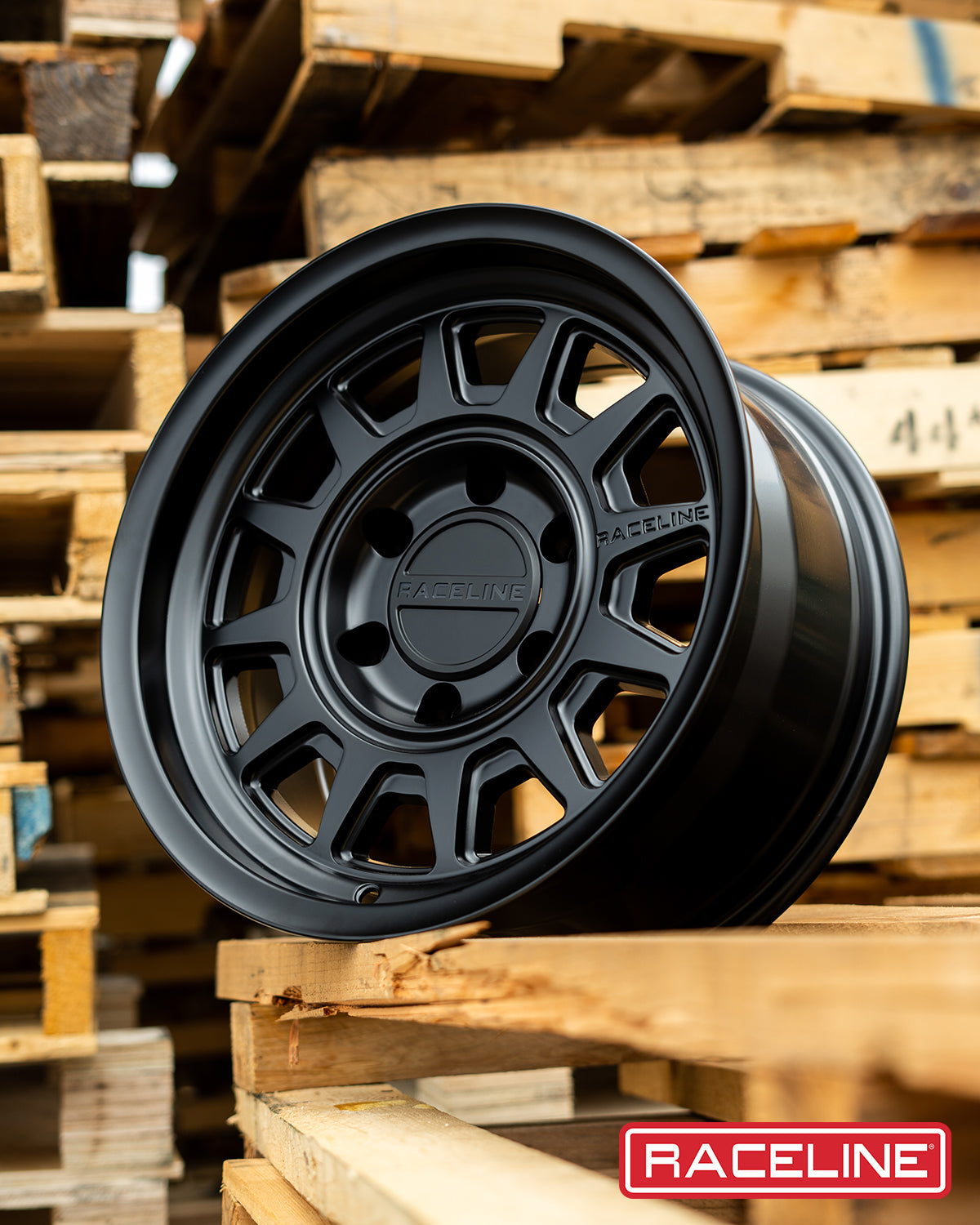

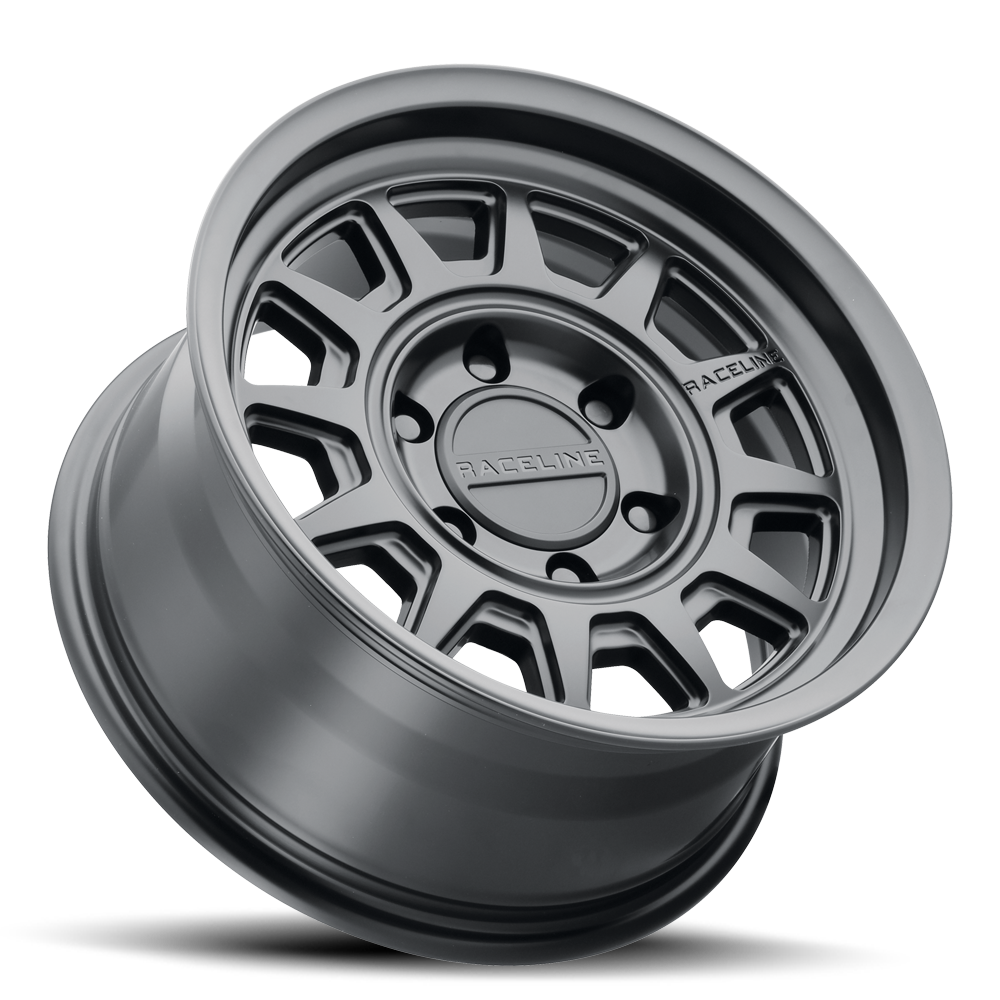

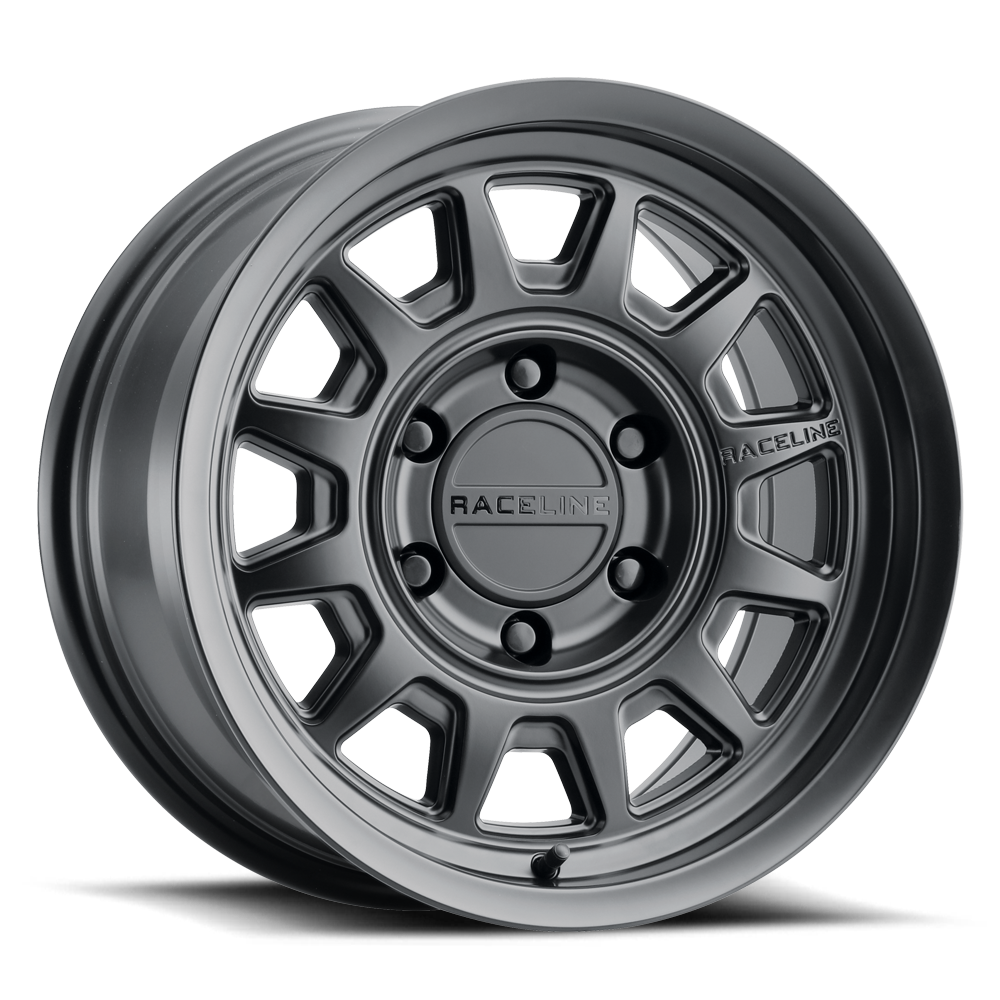

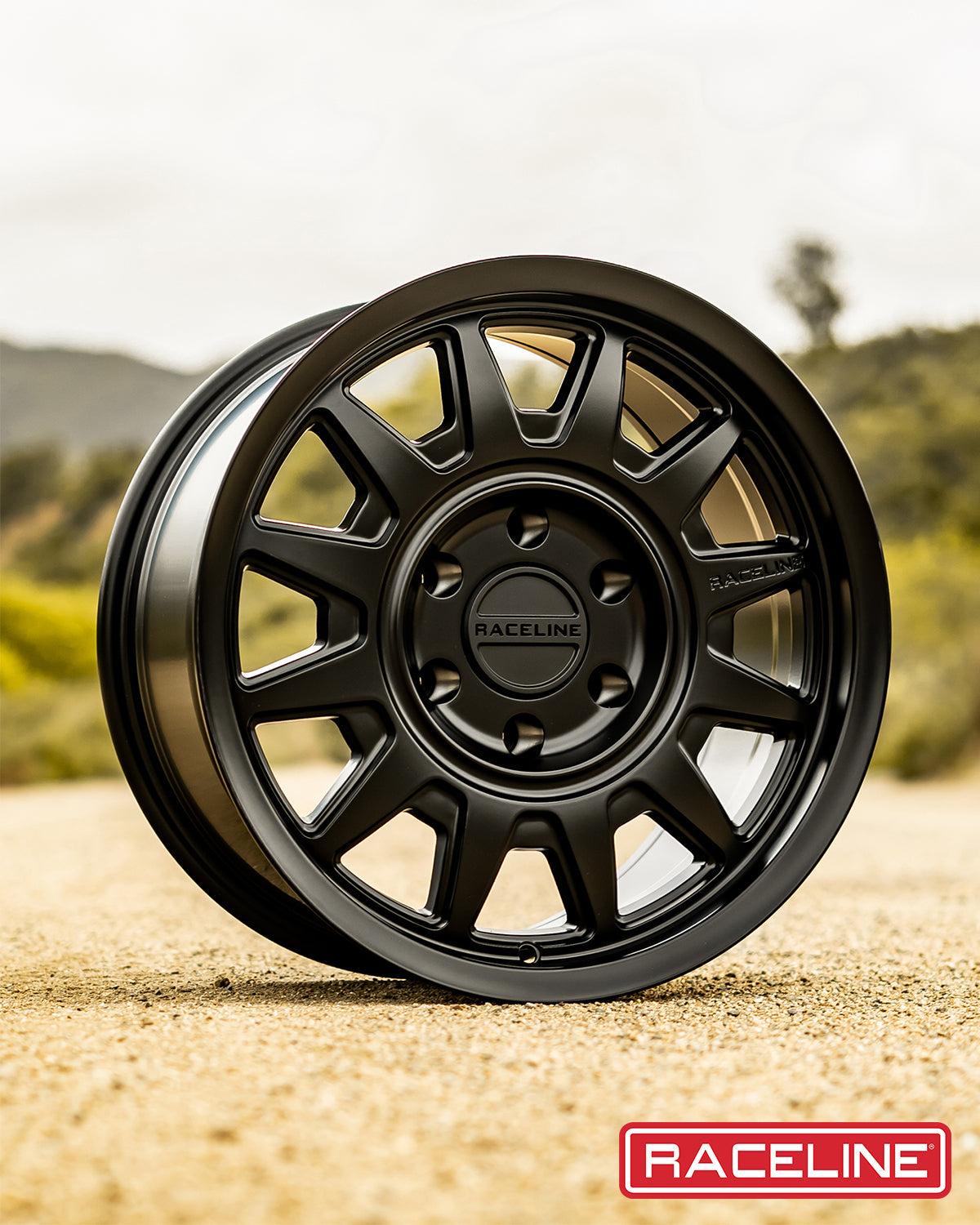

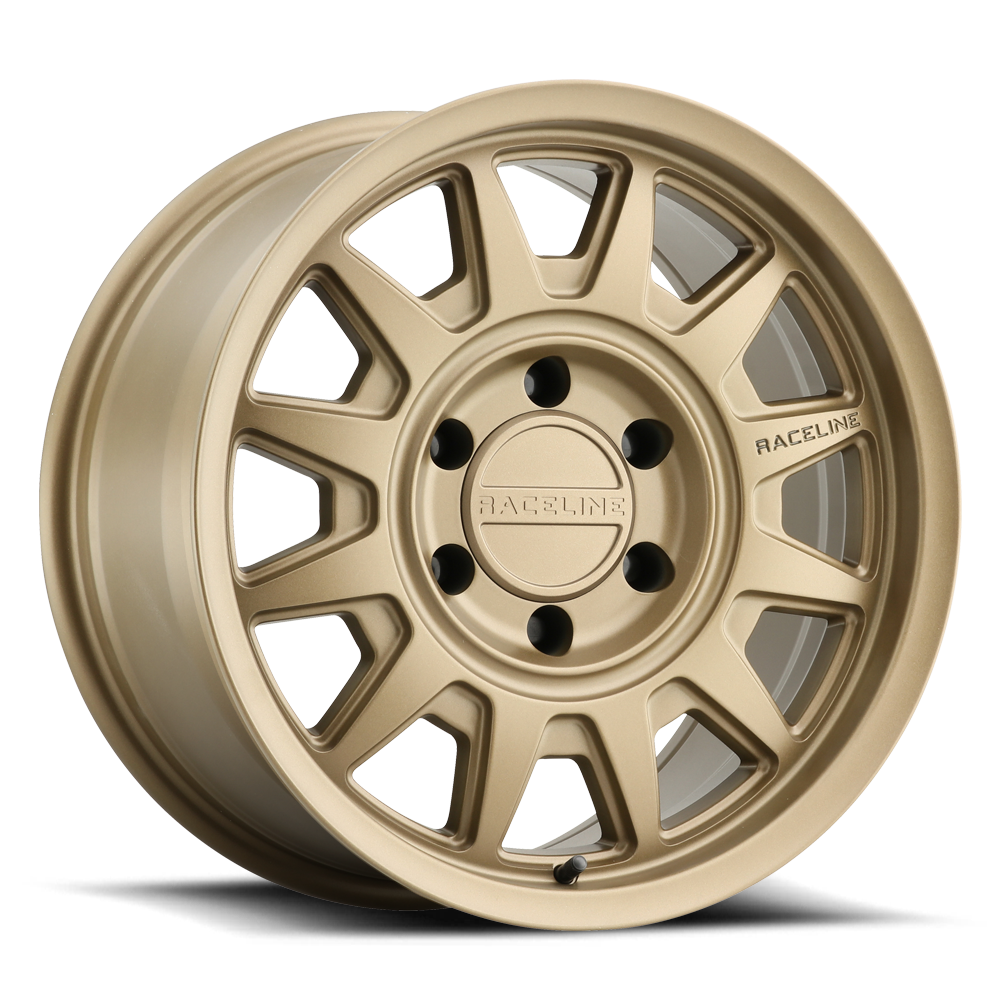

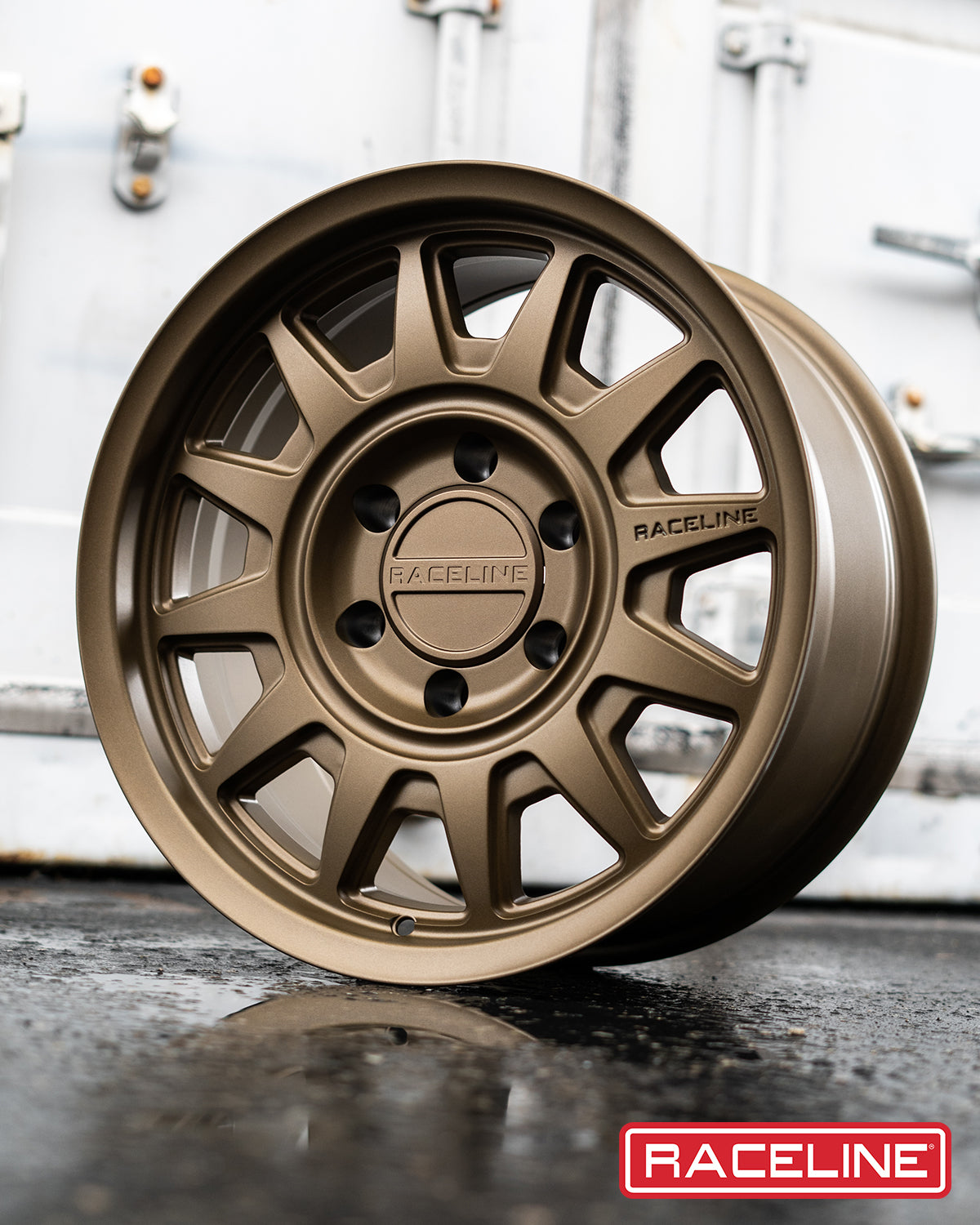

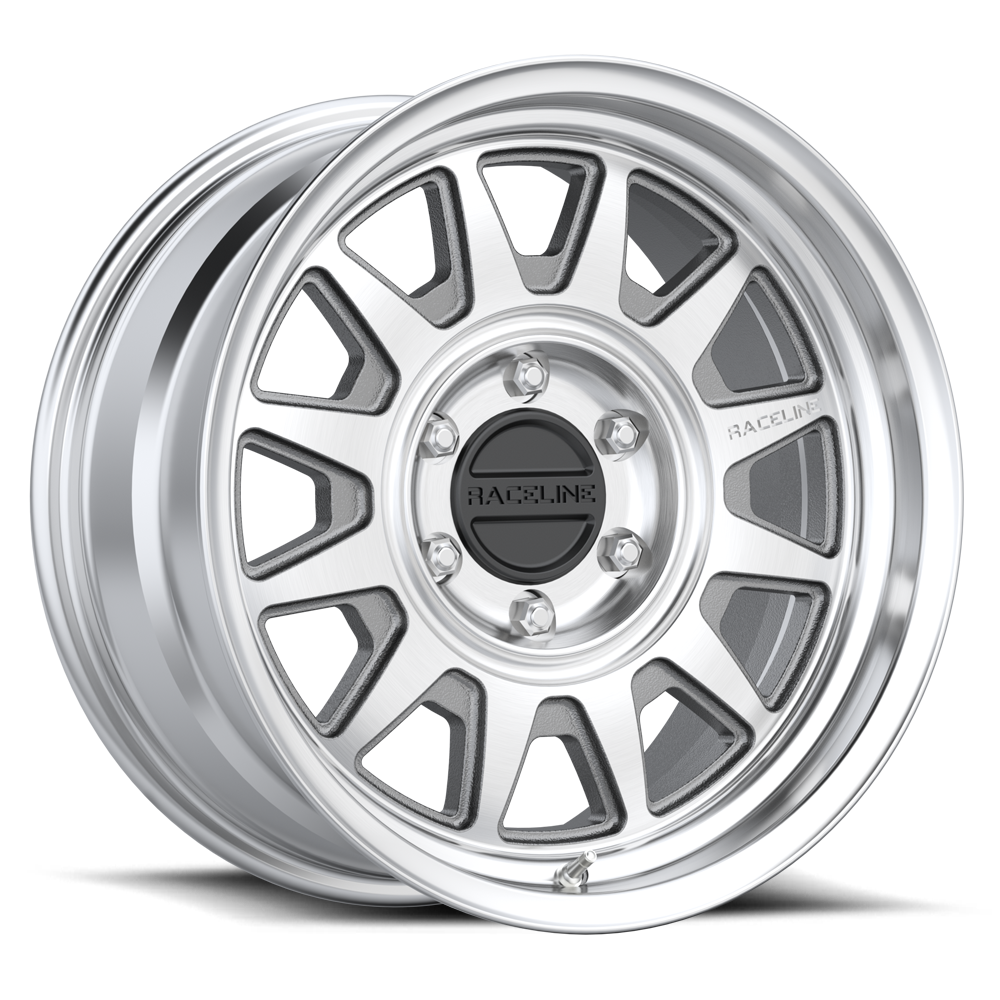

• Available in Satin Black, Bronze and Machined finishes
• Available in both 16” and 17” diameters for most trucks
• Passes or exceeds all DOT standard load ratings
• Hub centric fitments available for select vehicles
• Includes a Lifetime Structural Warranty (limitations may apply)

Machined caps sold seperately

Item Number	Size	BOLT PATTERN (mm)	Offset	Back Space (Inches)	Hub Bore	Weight	Load Rating
952B-68060-06	16X8	6X139.7	-6	4.23	106.1	23	2500
952B-68064-06	16X8	6X114.3	-6	4.23	66.1	23	2500

Item Number	Size	BOLT PATTERN (mm)	Offset	Back Space (Inches)	Hub Bore	Weight	Load Rating
952B-78550-00	17X8.5	5X127	0	4.72	78.1	25	2500
952B-78551-00	17X8.5	5X150	0	4.72	110.5	25	2500
952B-78560+18	17X8.5	6X139.7	18	5.43	106.1	25	2500
952B-78560-00	17X8.5	6X139.7	0	4.72	106.1	25	2500
952B-78562-00	17X8.5	6X120	0	4.72	78.1	25	2500
952B-78565+18	17X8.5	6X135	18	5.43	87.1	25	2500
952B-78565-00	17X8.5	6X135	0	4.72	87.1	25	2500
952B-79050-12	17X9	5X127	-12	4.5	78.1	28	2500
952B-79055-12	17X9	5X139.7	-12	4.5	106.5	28	2500
952B-79060-12	17X9	6X139.7	-12	4.5	106.1	28	2500
952B-79065-12	17X9	6X135	-12	4.5	87.1	28	2500
