Raceline Avenger Beadlock Wheels for Truck/SUV (Price Per Wheel)
Raceline Avenger Beadlock Wheels for Truck/SUV (Price Per Wheel)
Couldn't load pickup availability
*BEADLOCK WHEELS ARE FOR OFF-ROAD USE ONLY & ARE NOT DOT APPROVED FOR HIGHWAY USE
**BEADLOCK WHEELS ARE NOT SUGGESTED FOR ANY 3/4 TON AND LARGER VEHICLES WEIGHING OVER 6500 LBS.

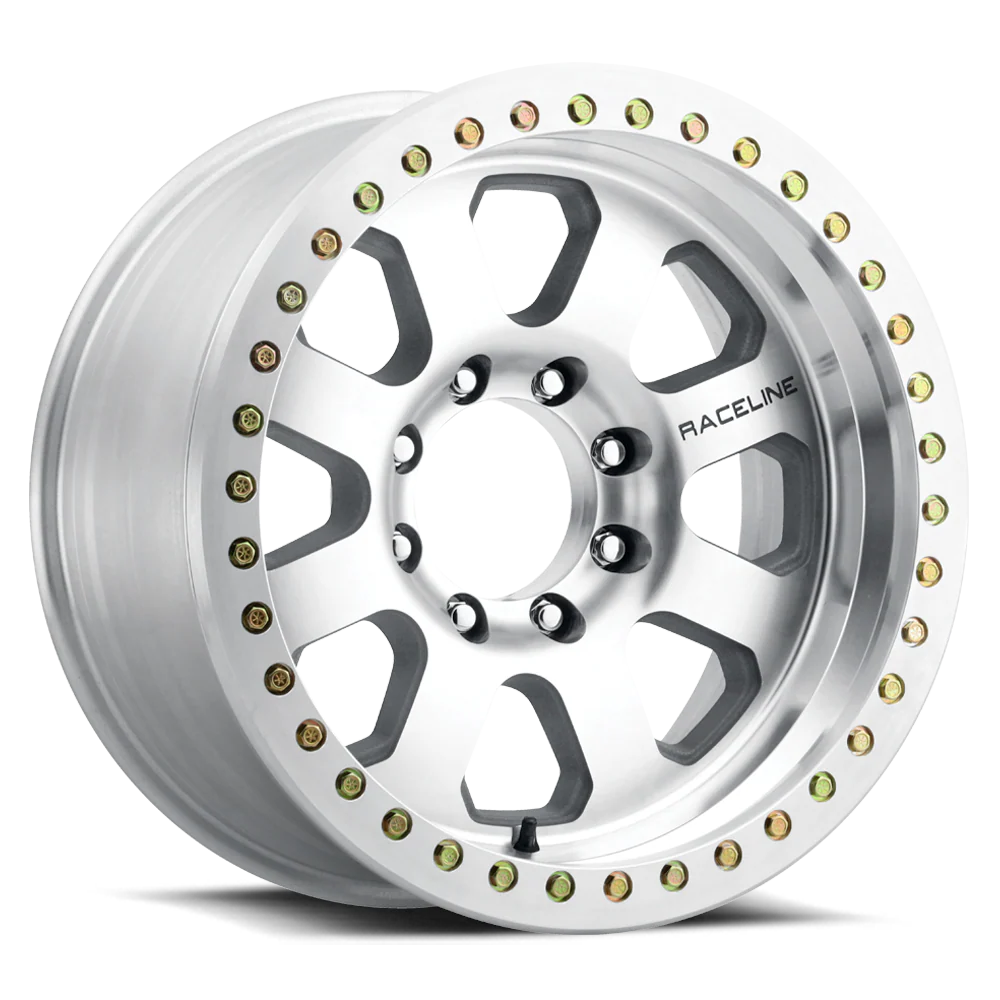

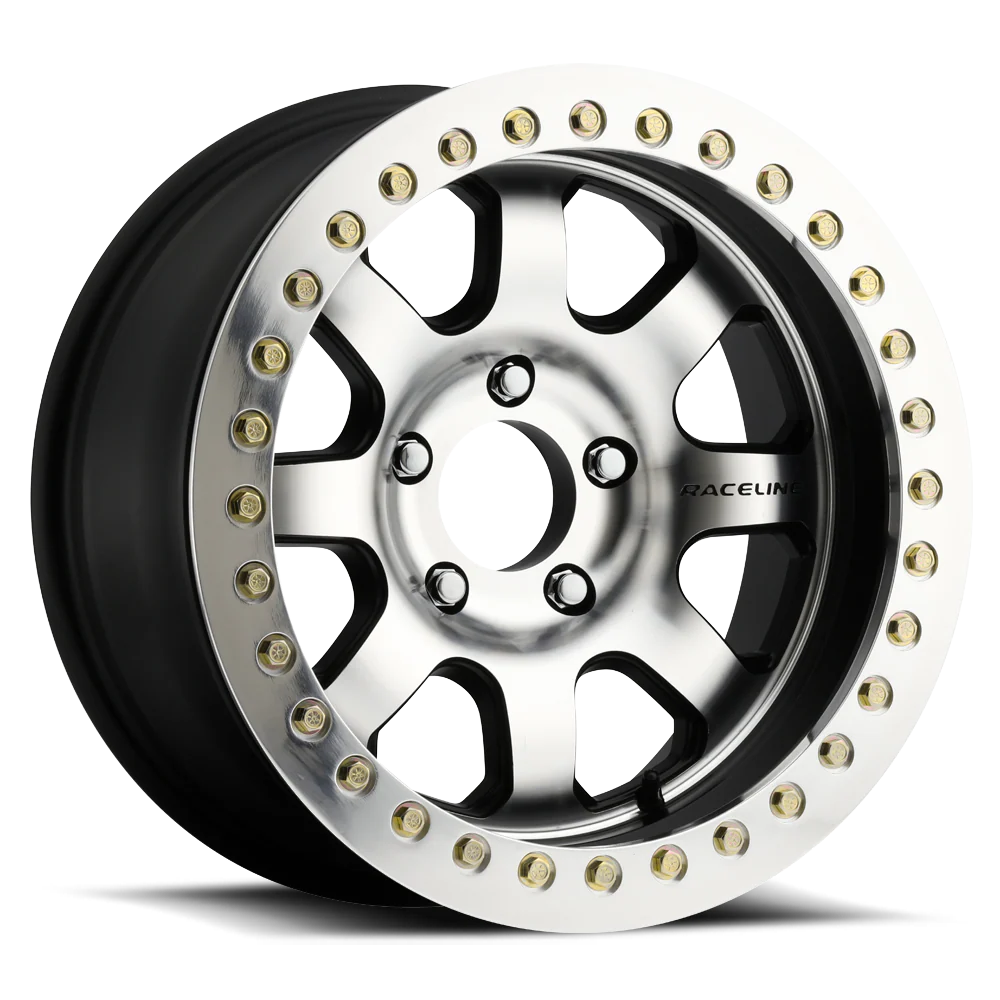

Following the success of the Monster, is the Avenger Beadlock by Raceline. Another industry leading wheel and one of the first 20” beadlocks ever releases. Raceline, the leader in wheel performance, design and durability!
• Classic 8 spoke design with a cast in Raceline logo that is easily recognizable
• Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring.
• Engineered to be one of the strongest wheels available.
• US made grade 8 zinc beadlock hardware with hardened steel PEM-nuts that along with captive washers can be replaced as needed...no more stripped wheels that are deemed worthless. Another industry best that are standard issue with the Avenger.
• 17" Aluminum Beadlock Bolts = 1.50" length
• 20" Aluminum Beadlock Bolts = 1.75" length
• For thicker beaded tires, Raceline Beadlock ring spacers are available to ensure proper ring seating.
• The Official Wheel of NORRA, MidAmerica Outdoors, Norcal Rock Racing, Southern Rock Racing Series, Nor Cal Rock Racing, Texplex Motorsports Park and UTV Championships as well as too many others to list.
• Custom bolt patterns and hub bores can be drilled to your specifications, along with special desert racing lug seats which are noted by “DBP” on the SKU’s, for more information or if you have questions, please contact sales@karyokuae.com
BEADLOCK WHEELS ARE CUSTOM DRILLED TO ORDER AND WILL HAVE A 2-4 WEEK LEAD TIME.
| Size | BOLT PATTERN (mm) | Offset (mm) | Back Space (inches) | Hub Bore (mm) | Weight | Load Rating lbs | |
|---|---|---|---|---|---|---|---|
| 17X9 | 6X135 | -12 | 4.5 | 87.10 | N/A | 3400 | |
| 17X9 | 8X6.5 | -12 | 4.5 | 130.81 | 41 | 3400 | |
| 17X9 | 8X170 | -12 | 4.5 | 130.81 | N/A | 3400 | |
| 17X9 | 5X5.5 | -12 | 4.5 | 107.95 | 37 | 3400 | |
| 17X9 | 6X135 | -6 | 4.75 | 87.10 | N/A | 3400 | |
| 17X9 | 8X6.5 | 0 | 5 | 130.81 | 40 | 3400 | |
| 17X9 | 8X6.5 | -6 | 4.75 | 130.81 | N/A | 3400 | |
| 17X9 | 8X170 | 0 | 5 | 130.81 | N/A | 3400 | |
| 17X9 | 6X5.5 | 0 | 5 | 107.95 | N/A | 3400 | |
| 17X9 | 5X5 | 0 | 5 | 83.82 | N/A | 3400 | |
| 17X9 | 5X5 | -12 | 4.5 | 83.82 | 43 | 3400 | |
| 17X9 | 5X5.5 | 0 | 5 | 107.95 | N/A | 3400 | |
| 17X9 | 6X5.5 | -12 | 4.5 | 107.95 | N/A | 3400 | |
| 17X9 | 8X170 | -6 | 4.75 | 130.81 | N/A | 3400 | |
| 17X9 | 5X5.5 DBP | 0 | 5 | 107.95 | N/A | 3400 | |
| 17X9 | 5X5.5 DBP | -12 | 4.5 | 107.95 | N/A | 3400 | |
| 17X9 | 6X5.5 DBP | 0 | 5 | 107.95 | N/A | 3400 | |
| 17X9 | 6X5.5 DBP | -12 | 4.5 | 107.95 | N/A | 3400 |
| Size | BOLT PATTERN (mm) | Offset (mm) | Back Space (inches) | Hub Bore (mm) | Weight | Load Rating | |
|---|---|---|---|---|---|---|---|
| 20X10 | BLANK | -38 | 4 | 83.82 | 55 | 3500 | |
| 20X10 | 8X6.5 | -12 | 5 | 130.81 | 55 | 3640 | |
| 20X10 | 8X6.5 | -25 | 4.5 | 130.81 | 55 | 3640 | |
| 20X10 | 8X170 | -25 | 4.5 | 130.81 | 55 | 3640 | |
| 20X10 | BLANK | -38 | 4 | 83.82 | 55 | 3640 | |
| 20X10 | 5X5.5 | -12 | 5 | 107.95 | 55 | 2500 | |
| 20X10 | 6X5.5 | -25 | 4.5 | 107.95 | 55 | 2500 | |
| 20X10 | 8X170 | -38 | 4 | 130.81 | 55 | 3640 | |
| 20X10 | BLANK | -25 | 4.5 | 83.82 | 55 | 2500 | |
| 20X10 | 5X5 | -12 | 5 | 83.82 | 55 | 2500 | |
| 20X10 | 5X5 | -25 | 4.5 | 83.82 | 55 | 2500 | |
| 20X10 | 5X5 | -38 | 4 | 83.82 | 55 | 2500 | |
| 20X10 | 6X5.5 | -12 | 5 | 107.95 | 55 | 2500 | |
| 20X10 | 6X135 | -12 | 5 | 87.1 | 55 | 2500 | |
| 20X10 | 6X135 | -38 | 4 | 87.1 | 55 | 2500 | |
| 20X10 | BLANK | -25 | 4.5 | 83.82 | 52 | 2500 | |
| 20X10 | 5X5.5 | -25 | 4.5 | 107.95 | 52 | 2500 | |
| 20X10 | 5X5.5 | -38 | 4 | 107.95 | 52 | 2500 | |
| 20X10 | 6X5.5 | -38 | 4 | 107.95 | 52 | 2500 | |
| 20X10 | 6X5.5 DBP | -25 | 4.5 | 108 | 55 | 3640 | |
| 20X10 | 6X5.5 DBP | -38 | 4 | 107.95 | 52 | 3640 | |
| 20X10 | 6X135 | -25 | 4.5 | 87.1 | 52 | 2500 | |
| 20X10 | 8X6.5 | -38 | 4 | 130.81 | 55 | 3640 |
