Raceline Wheels RT291M Ryno Beadlock (Price Per Wheel)
Raceline Wheels RT291M Ryno Beadlock (Price Per Wheel)
Couldn't load pickup availability
to your vehicle. Raceline, the leader in wheel performance, design and durability!

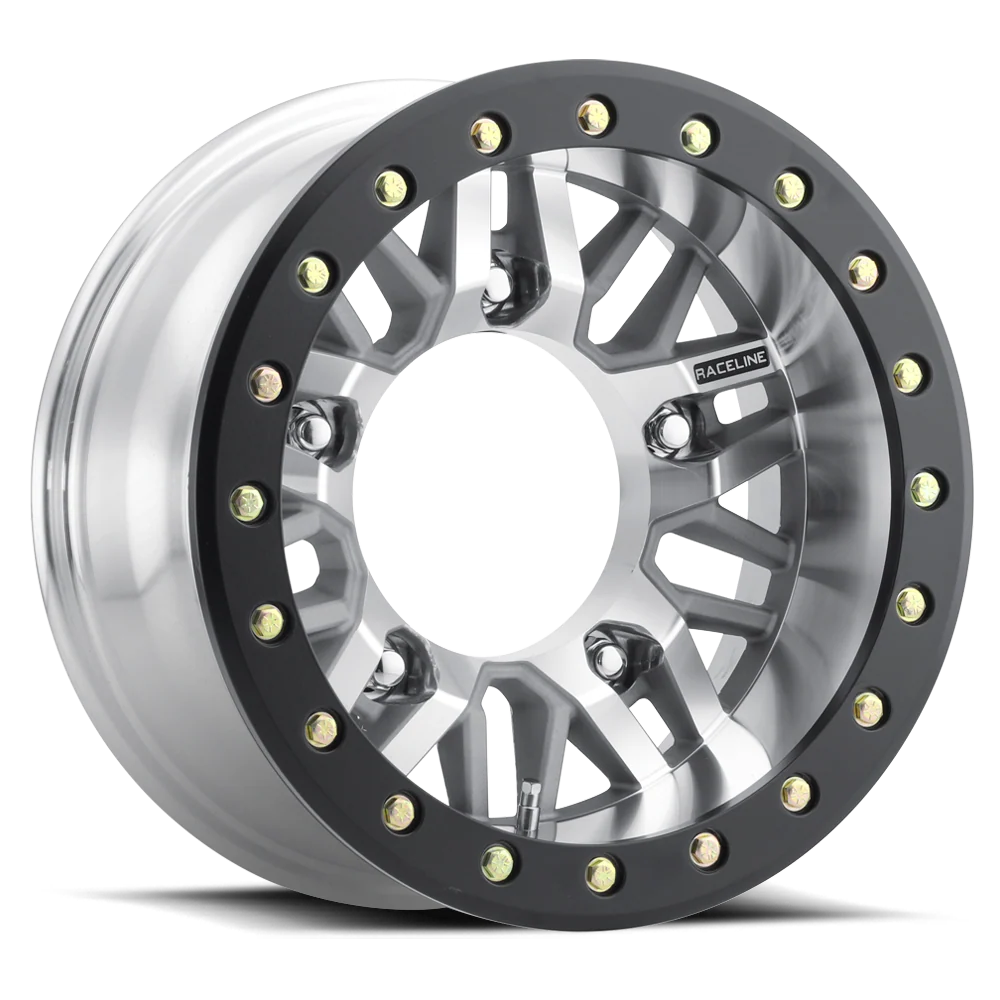

• Rugged split 10 spoke design with offset as-cast spokes gives the Ryno a modern feel.
• A Raceline three-dimensional spoke logo added for brand visibility
• Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with US made Grade 8 zinc beadlock hardware included.
• 17" Aluminum Beadlock Bolts = 1.50" length
• Engineered to be one of the strongest wheels available.
• For thicker beaded tires, Raceline Beadlock ring spacers are available to ensure proper ring seating.
• Available in both 15” and 17” diameters for buggy 5x205 bolt patterns
• Ball seat lug nuts required for wheels with 5x205 bolt pattern (Click to Purchase)
• The Official Wheel of NORRA, MidAmerica Outdoors, Norcal Rock Racing, Southern Rock Racing Series, Nor Cal Rock Racing, Texplex Motorsports Park and UTV Championships as well as too many others to list.
(BEADLOCK WHEELS ARE FOR OFF-ROAD USE ONLY & ARE NOT DOT APPROVED FOR HIGHWAY USE)
BEADLOCK WHEELS ARE CUSTOM DRILLED TO ORDER AND WILL HAVE A 2-4 WEEK LEAD TIME.
Item Number | Size | BOLT PATTERN (mm) | Offset (mm) | Back Space (inches) | Hub Bore (mm) | Weight | Load Rating |
---|---|---|---|---|---|---|---|
RT291M-54520-24 | 15x4.5 | 5x205 | -24 | 1.75 | 160 | 18 | 1600 |
RT291M-55520-05 | 15X5.5 | 5X205 | -05 | 2.88 | 160 | 19 | 1600 |
RT291M-57020-45 | 15X7 | 5X205 | -45 | 2.25 | 160 | 25 | 2200 |
Item Number | Size | BOLT PATTERN (mm) | Offset (mm) | Back Space (inches) | Hub Bore (mm) | Weight | Load Rating |
---|---|---|---|---|---|---|---|
RT291M-76520-19 | 17x6.5 | 5x205 | -19 | 3 | 160 | N/A | 3100 |
RT291M-76534-19 | 17x6.5 | 5x205 | -19 | 3.07 | 83.82 | N/A | 3100 |
RT291M-78020-28 | 17X8 | 5x205 | -28 | 3.5 | 160 | 35 | 3100 |
