Wagner Tuning 2022+ Ford F-150 Raptor Gen 3 Competition Intercooler Kit

COMPETITION INTERCOOLER KIT FORD F150 RAPTOR 2021+ Gen 3
Item no.: 200001201

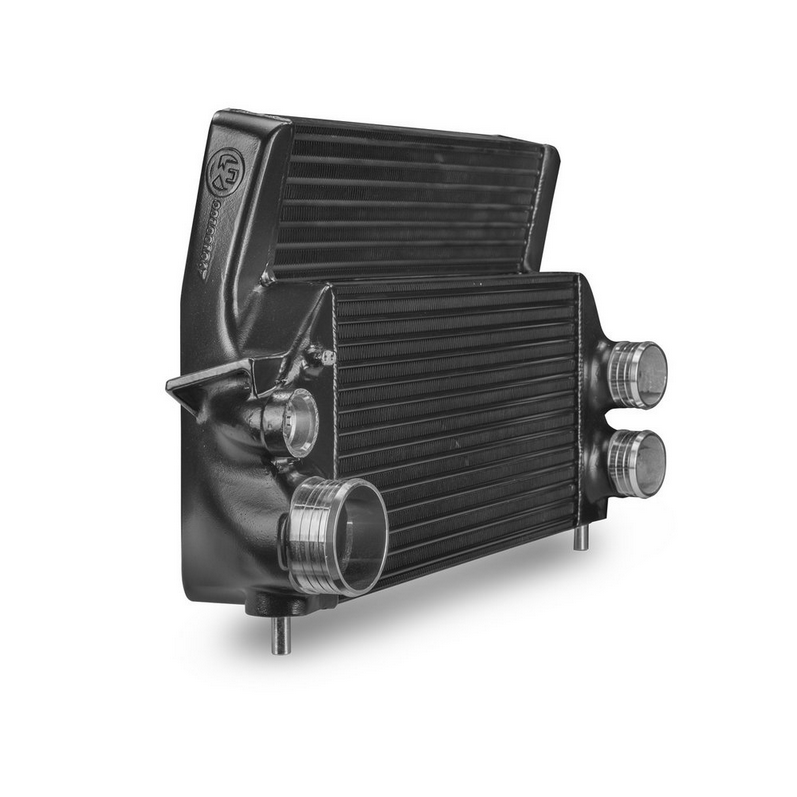

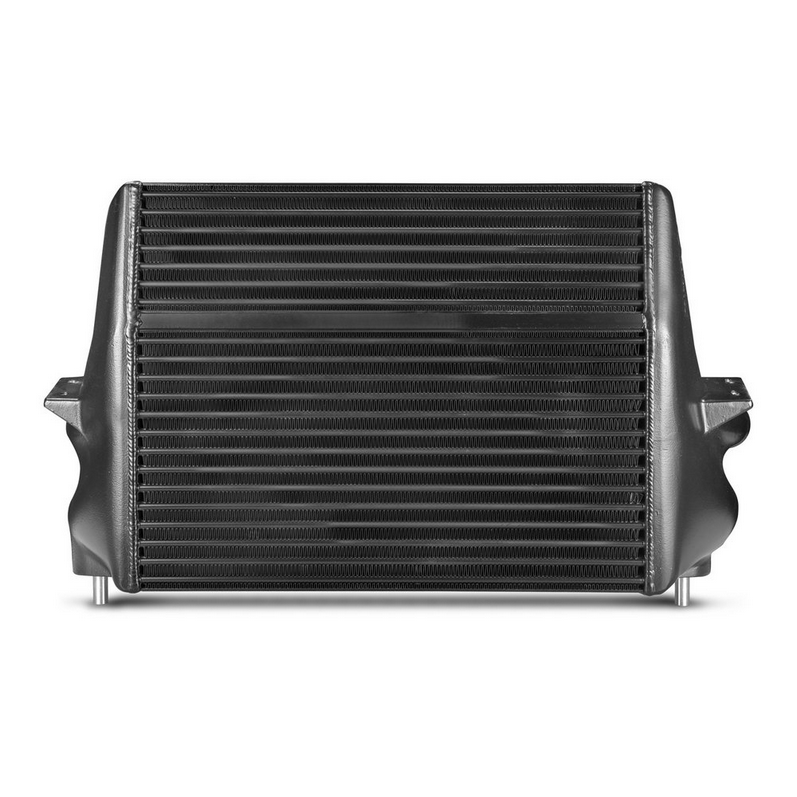

The High Performance Intercooler has the following core size (500mmx388mmx125mm/stepped)/(19,69Inch x 15,28Inch x 4,92Inch/stepped), providing a 62% larger face area, as well as 108% more volume compared to the original intercooler.

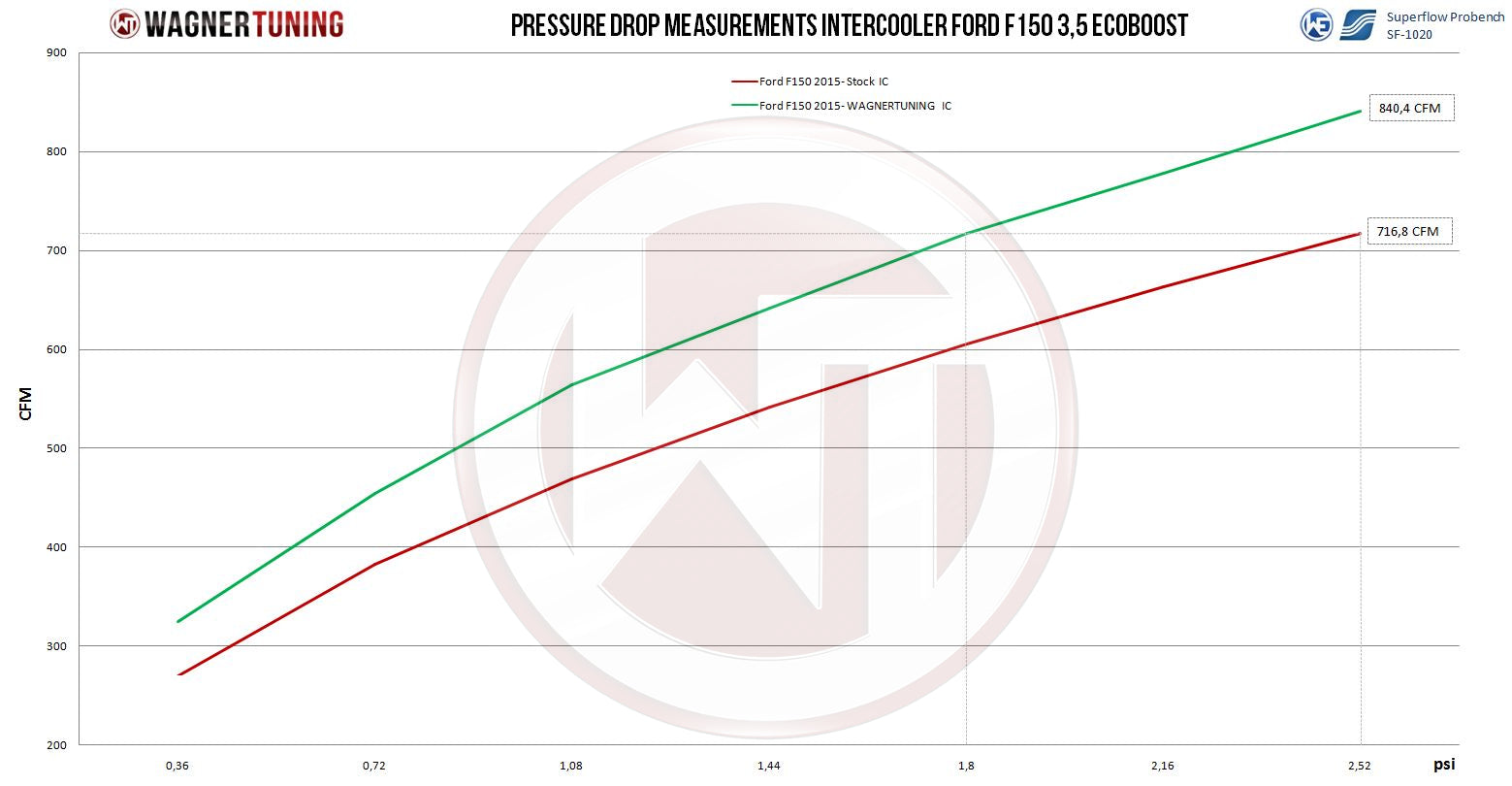

Optimized by CAD, the new Competition High Speed Core and cast aluminium endtanks give this intercooler excellent cooling properties. Flow analyses and simulations were created to optimise the design. With 50% less back pressure this intercooler is the best choice when it comes to performance gains and low intake temperatures.

Fitment is easy, replacing the OEM intercooler. The Intercooler Kit includes additional mounting material to relocate the stock oil cooler and adapt the stock fan frame. All of our products undergo rigorous quality control.

OEM Intercooler:
Cooling Surface 120.000mm² / 186Inch²
Charge-Air-Volume 9,6L

Wagner Tuning Intercooler:
Cooling Surface 194.000mm² / 300,7 Inch²
Charge-Air-Volume 19,9L / 1214.37Inch³

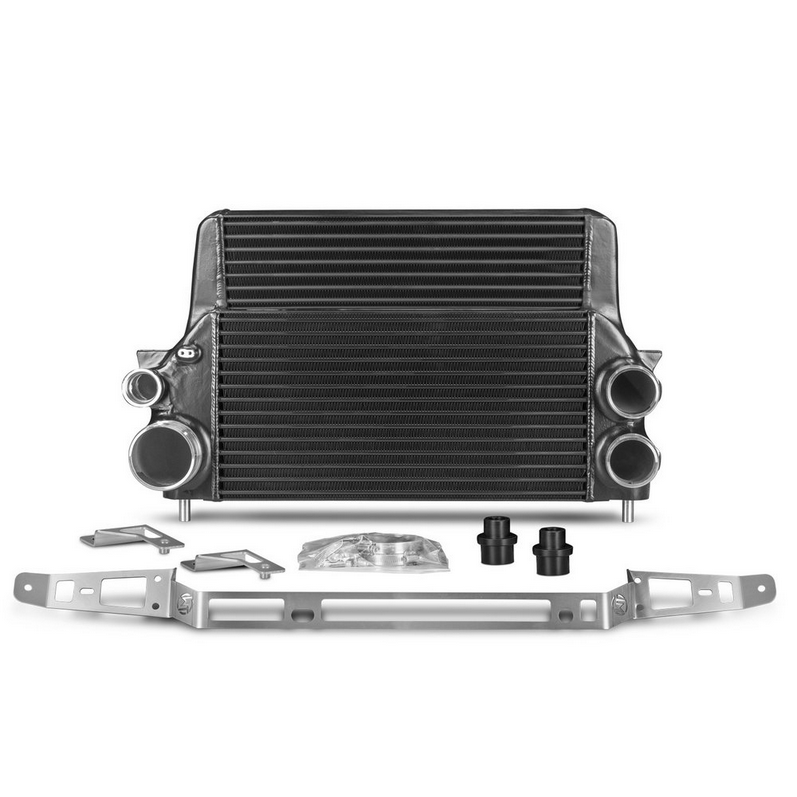

kit comes with:
1 intercooler
1 silicone hose
1 mounting material
